High Efficiency Rotary Kiln High Temperature Resistant Metallurgical Industry
Overview:
The rotary kiln is the core calcining equipment in industrial production and is widely used in cement, lime, metallurgy and chemical industries. Its high temperature and slow rotation design can ensure that the materials react fully and improve the quality of the finished product. It uses high temperature resistant materials and advanced combustion technology, saves energy and reduces consumption, and adapts to the needs of continuous large-scale production. It is an ideal choice for modern industrial and mining enterprises.
Product Image:
Product Introduction:

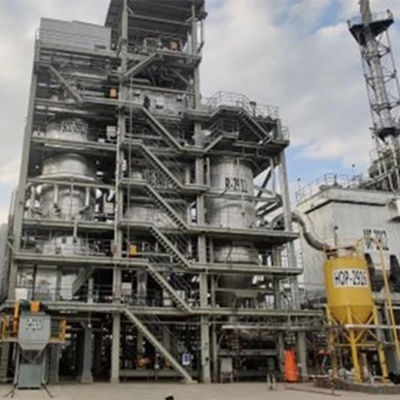

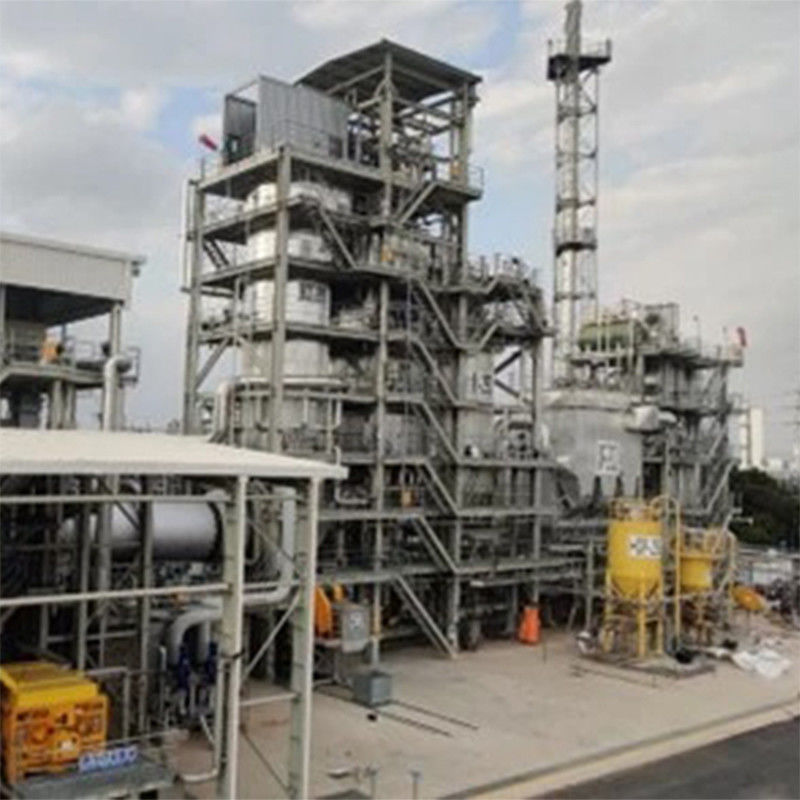

This hazardous waste incineration unit is an integral part of the Nanjing integrated production base of Celanese, a Fortune 500 American-owned company. The unit is designed to incinerate various types of chemical waste from the factory, including domestic garbage, hazardous solid waste from eight upstream units, sludge, waste liquid, waste gas, and other categories, totaling nine in all. Once operational, the facility will support the factory's commitment to green production and the principle of zero waste leaving the premises.
The unit's centralized hazardous waste disposal capacity is 12,000 tons/year. The unit additionally generates 6.9 tons/hour of 2.5MPa(G) saturated steam, which is integrated into the factory's pipeline network.
The unit occupies an area of 32 meters by 97 meters and includes various process units such as a waste liquid storage tank area, solid waste pretreatment and conveyance, incineration and waste heat recovery, flue gas rapid cooling, dust removal, desulfurization, and denitrification, ensuring that the incinerated flue gas meets emission standards.
This project reached mechanical completion on September 30, 2020, and completed thermal commissioning, including furnace drying, on November 10, 2020. It officially started production and operation in early December 2020.
Theory:
A rotary kiln’s body is a long and inclined cylinder that rotates to uniformly heat wastes in a high-temperature environment. During waste treating, high-temperature combustion is employed to effectively decompose and process organic materials and other components in waste. The design of the rotary kiln allows waste to stay in a high-temperature environment for a certain duration, ensuring thorough combustion of the waste while effectively dealing with hazardous substances.
Ruiding has independently developed a rotary kiln that combines all the advantages of a traditional rotary kiln incinerator. Significant advancements have been achieved in enhancing heat exchange and ash burnout rates. The incorporation of high-temperature grate technology has elevated the traditional second-stage combustion chamber to a more efficient second-stage furnace, resulting in improved ash burnout rates and a further increase in the incineration efficiency of the rotary kiln.This rotary kiln system is equipped with a chain-type evaporator that addresses the issue of inadequate contact between air and waste in traditional rotary kilns. This optimization enhances waste heat exchange and combustion effectiveness, prevents slag formation inside the kiln, and significantly boosts both combustion efficiency and equipment lifespan. With a high operational uptime, user-friendly maintenance, and suitability for medium to large-capacity processing needs, this rotary kiln solution offers customers an economically viable option for waste treatment.
Ruiding provides customized solutions for hazardous waste by analyzing critical parameters such as elemental composition, calorific value, moisture content, viscosity, ash residue rate, and combustion rate. These tailored solutions are designed to meet the specific needs and characteristics of the waste for each customer.
Advantages:
(1) Ruiding has independently developed a rotary kiln with reliable and safe operation. It is equipped with an advanced feeding system for automatic feeding and ash discharge. The system employs tight sealing measures and maintains a good furnace negative pressure to ensure that harmful gases are not released externally.
(2) The self-developed rotary kiln by the company is also equipped with a Selective Catalytic Reduction (SNCR) system, which efficiently removes NOx generated under high-temperature conditions, effectively preventing atmospheric pollution.
(3) The use of activated carbon adsorption and dual-bag dust removal technology ensures that dioxin emissions fully comply with standards.
(4) The rotary kiln equipment is equipped with an integrated heat recovery device, capable of capturing residual heat and utilizing it through a heat recovery boiler, achieving energy savings, reducing energy consumption, and enhancing the overall thermal efficiency of the system.
R&D and Production:
Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.
This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
Related Products:
Main Clients:
Company Introduction:
Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.
Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.
Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
Faq:
1. What is the company's main business?
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) .
2. Do you have industry qualification certification?
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
3. What are the core products?
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?
We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation?
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
