Overview:

Modern rotary kilns have become an important technical equipment for hazardous waste disposal. Its high temperature and long residence time can ensure the complete decomposition of hazardous substances such as medical waste and chemical waste. Equipped with a complete tail gas treatment system (quench tower, bag dust removal, SCR denitrification, etc.), the dioxin emission concentration can be controlled below 0.1ng TEQ/m³, which is far better than the EU standard. Some cement kiln co-disposal projects can also convert inorganic components in waste into cement mineral components, realizing real resource utilization.

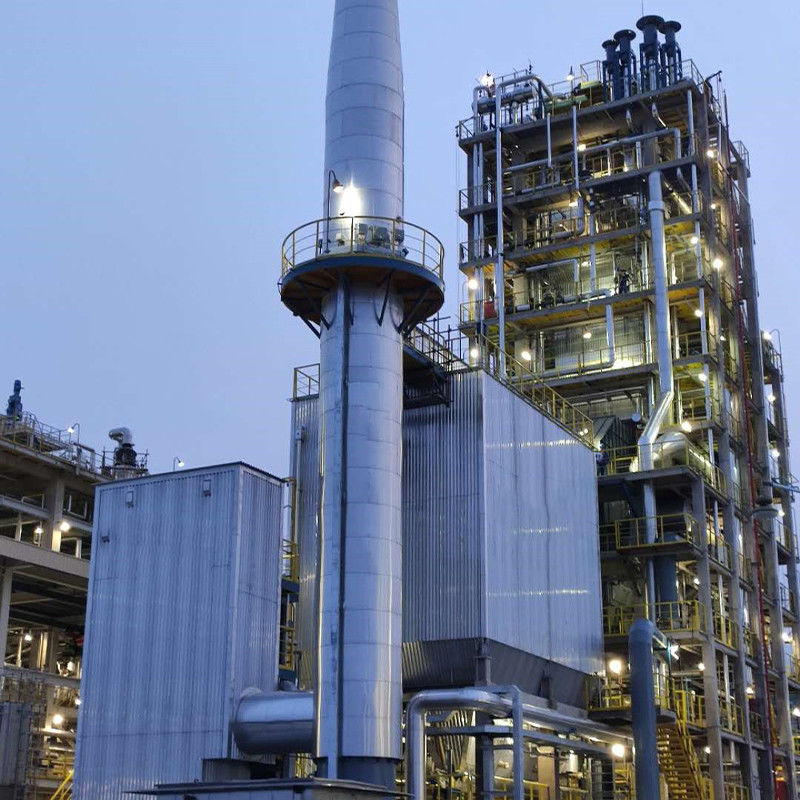

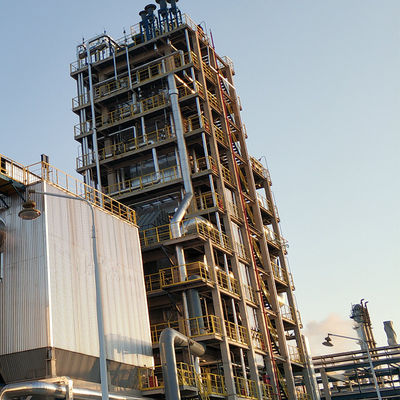

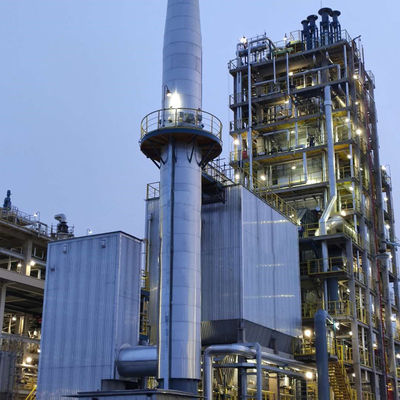

Product Image:

Product Introduction:

This incineration system is designed for high-salt organic wastewater in the chemical industry (such as wastewater from acrylic acid and ester production). Through the deep integration of the furnace and the waste heat boiler, it realizes the efficient coordination of incineration and heat recovery. The system focuses on low operating costs and high thermal energy utilization (>85%), directly treats wastewater with a salt content of 19%, and simultaneously solves the problem of coordinated disposal of waste liquid, waste gas, and solid waste. During the incineration process, waste heat steam drives salt to react with carbon dioxide to generate solid salt (such as sodium carbonate/calcium carbonate), realizing the dual control of salt resource recovery and carbon emissions. At the same time, the salt-resistant furnace structure extends the equipment life and avoids the blockage and corrosion problems caused by salt crystallization in traditional incinerators.
Waste gas treatment capacity: 16,000 m³/h (tank waste gas)
Waste liquid treatment capacity: 3,500 kg/h (heavy component waste liquid)
High-salt wastewater treatment capacity: 10,000 kg/h (salt content 19%)
Waste heat steam production: 28,000 kg/h (saturated steam, used for salt recovery and carbon emission reduction)
‌Applicable materials‌: high-salt organic wastewater, waste solvents, organic waste gas, small amounts of solid waste
‌Core technology‌: furnace-boiler integrated design, combined multi-nozzle burner, salt-carbon reaction recovery technology

Theory:

A rotary kiln’s body is a long and inclined cylinder that rotates to uniformly heat wastes in a high-temperature environment. During waste treating, high-temperature combustion is employed to effectively decompose and process organic materials and other components in waste. The design of the rotary kiln allows waste to stay in a high-temperature environment for a certain duration, ensuring thorough combustion of the waste while effectively dealing with hazardous substances.

Ruiding has independently developed a rotary kiln that combines all the advantages of a traditional rotary kiln incinerator. Significant advancements have been achieved in enhancing heat exchange and ash burnout rates. The incorporation of high-temperature grate technology has elevated the traditional second-stage combustion chamber to a more efficient second-stage furnace, resulting in improved ash burnout rates and a further increase in the incineration efficiency of the rotary kiln.This rotary kiln system is equipped with a chain-type evaporator that addresses the issue of inadequate contact between air and waste in traditional rotary kilns. This optimization enhances waste heat exchange and combustion effectiveness, prevents slag formation inside the kiln, and significantly boosts both combustion efficiency and equipment lifespan. With a high operational uptime, user-friendly maintenance, and suitability for medium to large-capacity processing needs, this rotary kiln solution offers customers an economically viable option for waste treatment.

Ruiding provides customized solutions for hazardous waste by analyzing critical parameters such as elemental composition, calorific value, moisture content, viscosity, ash residue rate, and combustion rate. These tailored solutions are designed to meet the specific needs and characteristics of the waste for each customer.

Advantages:
(1) ‌Efficient heat utilization and cost control‌:
The integrated design reduces the heat loss of traditional incinerators by more than 40%, and the waste heat steam is directly reused in the production process, reducing the comprehensive energy consumption by 30%. Saturated steam drives the salt recovery reaction, reducing the amount of chemical agents added, the salt recovery rate is ≥90%, and the carbon emissions are reduced by 15-20%.
‌
‌(2) ‌Anti-salt corrosion and long-life design‌:
The inner wall of the furnace adopts gradient refractory materials (zirconia/silicon carbide composite layer), combined with the optimization of the salt gas-solid reaction path, to avoid high-temperature molten salt corrosion, and extend the equipment life by more than 50%. The automated salt discharge system removes the salt slag in the furnace in real time to ensure continuous operation time ≥8,000 hours/year.

‌(3) ‌Environmental protection and resource benefits‌:
Dioxin emissions <0.1 ng TEQ/m³, particulate matter <10 mg/m³, which is better than the national standard (GB 18484-2020). The salt recovery product (carbonate) can be directly used as an industrial raw material, and the annual resource benefits reach millions of yuan. It has been successfully put into operation in many large chemical companies, with a single system processing 320,000 tons of waste liquid annually.
