High Pressure Resistance Clamp On Heat Exchanger Precise Temperature Control Vibration and Shock Resistance

High Pressure Resistance Clamp On Heat Exchanger Precise Temperature Control Vibration and Shock Resistance

Overview:

The heat exchange efficiency of the clamp-type heat exchanger is very outstanding. The internal flow channel has been carefully designed to enable the cold and hot fluids to fully contact in the equipment to achieve efficient heat transfer. For example, in chemical production, the heat of the high-temperature reaction products needs to be transferred to the low-temperature raw materials for preheating. The clamp-type heat exchanger uses a reasonable flow channel layout to allow the two fluids to exchange heat in the best way, improve energy utilization efficiency, and reduce additional energy consumption. Moreover, this efficient heat exchange performance is not restricted by the type of medium. Whether it is common water and steam or some special chemical solutions, it can achieve good heat exchange effects, providing efficient heat treatment methods for many industrial production processes.

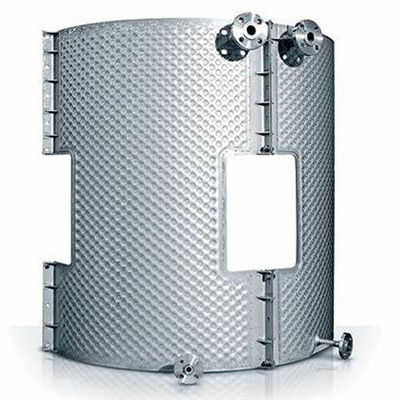

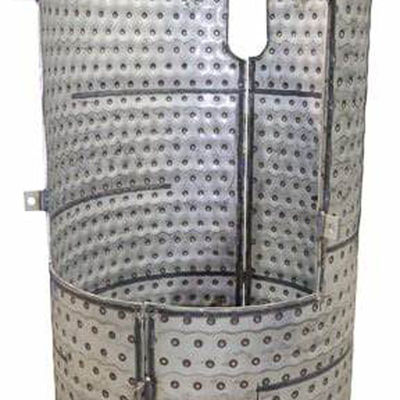

Product Image:

Brief  Introduction:

‌Food-grade surface technology‌: SUS304 material + mirror polishing (Ra≤0.4μm), no dead angle design passed 3A hygiene certification, and cleaning efficiency increased by 30%.
‌Anti-pollution sealing structure‌: The clamp interface adopts ‌EPDM food-grade sealing ring‌, which can withstand CIP/SIP cleaning (PH 1-14) to avoid cross-contamination of media.
‌Low temperature and high efficiency heat transfer‌: specially designed for dairy and beer fermentation tanks, the cold water (5°C) circulation temperature difference is controlled at ±0.5°C, reducing energy consumption by 20%.

Advantages:
SUS304 mirror polishing (Ra≤0.4μm), 3A certified, cleaning efficiency increased by 30%; ‌EPDM food-grade sealing ring‌: withstands pH 1-14 cleaning to avoid cross contamination; ‌Low-temperature circulation ±0.5°C temperature difference‌, dairy/beer fermentation energy consumption reduced by 20%.Aseptic process + energy-saving cleaning‌, meeting the strict hygiene standards of the food/pharmaceutical industry.

Applcation:
(1) Can be mounted on the surface of existing tanks or container to provide the heating or cooling.

(2) Dairy processing tank.

(3) Beverage processing vessels.

(4) Heating or cooling oil tank.

(5) Various reactors.

(6) Extruder-dryer.

(7) Heat Sink.

(8) Fermenters, beer vessels.

(9) Pharmaceutical and processing vessels.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
