Removable for Cleaning Falling Film Evaporators Low Liquid Demand Evaporative Cooling
Overview:
The high heat transfer coefficient of the falling film plate heat exchanger is one of its significant technical advantages. Compared with the traditional shell and tube heat exchanger, its heat transfer coefficient can be increased by 2-3 times, which can greatly reduce the size and weight of the equipment under the same heat exchange task. This is due to its unique falling film flow mode and optimized plate structure design, which makes the heat transfer between the fluid and the plate more sufficient. The high heat transfer coefficient not only improves the heat exchange efficiency, but also reduces the investment cost of the equipment, bringing higher economic benefits to users.

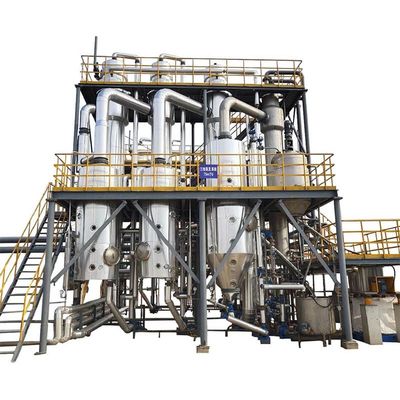

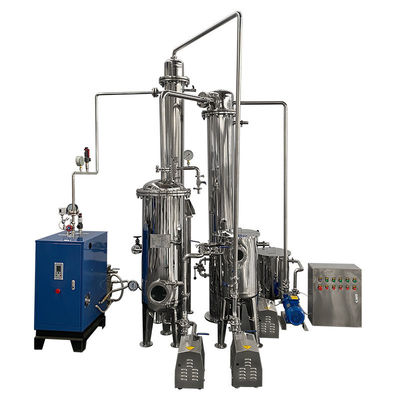

Product Image:
Brief Introduction:
Heavy-duty plate thickness design: The falling film plate heat exchanger adopts 2.0mm+2.0mm thickened plate, with a pressure resistance of 4.0MPa (industry ≤2.5MPa), which is suitable for high-temperature asphalt evaporation in the oil refining industry.
Ultra-high temperature medium adaptation: Supports heat transfer oil (400℃) and high-pressure steam (6MPa), and the thermal stability is improved by 40%.
Fully automatic safety interlock: When the pressure/temperature is abnormal, the heat source is cut off within 0.5 seconds, and the failure rate is reduced to 0.1 times/year.
Advantages:
(1) Heavy-load thickened plate design (2.0mm+2.0mm):
pressure resistance 4.0MPa (industry ≤2.5MPa), suitable for 400℃ heat transfer oil/6MPa steam;
(2) Fully automatic safety interlock:
0.5 seconds to cut off the heat source, annual failure rate ≤0.1 times;
(3) Adaptation to extreme working conditions:
thermal stability is improved by 40%, ensuring continuous production of high-temperature asphalt and petrochemical reaction liquid.
(4) Adaptation scenarios:
refining, chemical high-pressure and high-temperature medium treatment. Extreme pressure resistance + zero downtime, ensuring continuous production safety in high-risk working conditions.
Applcation:
(1) Water is evaporated to concentrate fruit juices
(2) Used for concentrating milk, whey, or other liquids
(3) Concentrating syrups, glucose solutions, or other sweeteners.
(4) Recovering organic solvents from waste liquids.
(5) Concentrate chemicals that are prone to decomposition or sensitive to high temperatures
(6) Reducing the volume of industrial wastewater by evaporating water.
(7) Concentrating medicinal liquids.
R&D and Production:
Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.
This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
Related Products:
Main Clients:
Company Introduction:
Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.
Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.
Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
Faq:
1. What is the company's main business?
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) .
2. Do you have industry qualification certification?
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
3. What are the core products?
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?
We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation?
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
