Fully Automatic Corner Tube Boiler Intelligent Control Durable Earthquake Resistance

Fully Automatic Corner Tube Boiler Intelligent Control Durable and Low Consumption

Overview:

Corner tube boilers use large-diameter downcomers at four corners to replace the traditional steel frame structure, forming a self-supporting frame system with strong earthquake resistance and a 30% to 50% reduction in floor space. The steel frame-free design not only reduces material costs, but also simplifies the installation process, making it particularly suitable for industrial scenarios with limited space, such as chemical plants and paper mills.

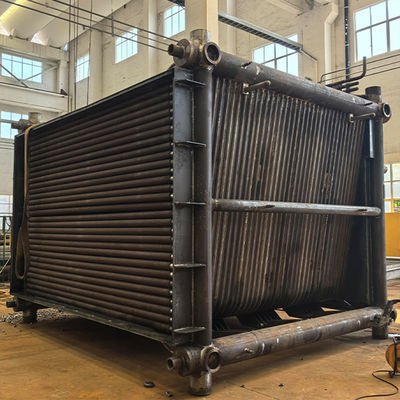

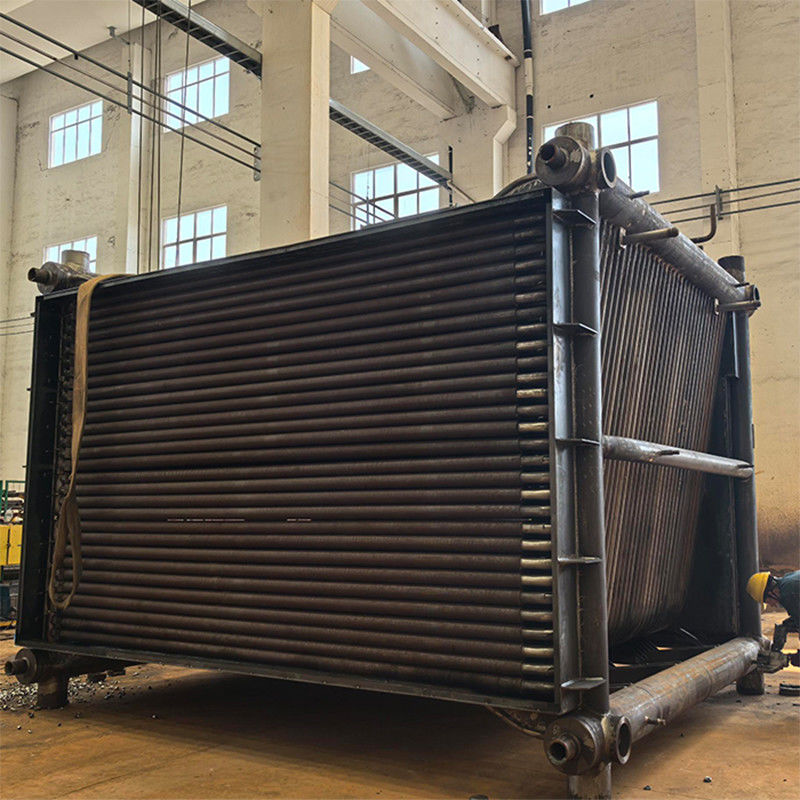

Product Image:

Product  Introduction:

This ‌50 t/h medium-temperature, medium-pressure gas-fired boiler‌ features a ‌natural circulation system‌, ‌single drum design‌, ‌horizontal flue passage‌, ‌longitudinal drum arrangement‌, ‌full membrane wall structure‌, and ‌slightly pressurized combustion‌‌.Key design features are as follows:
(1) Steam Pre-Separation & Drum Connection‌:Top connecting pipes of the water tube system link to the lower header via ‌vertical risers‌, directing pre-separated steam ‌above the drum water level‌ to prevent submergence during evaporation‌.
(2) Steam Drying & Separation‌:Steam passes through ‌integrated separators‌ (e.g., cyclone separators, corrugated plate separators) above the drum water level, achieving ‌≥95% steam dryness‌‌.
(3) Tubular System & Thermal Balance‌:A fully welded network of ‌connecting pipes, headers, and water-cooled walls‌ employs ‌synchronous expansion design‌ (aligned with drum expansion) to neutralize thermal stress‌.Insulated pipes and headers require ‌no additional maintenance‌‌.

Technical Specifications:

Advantages:

(1) ‌‌Structural innovation‌:

Four-corner large-diameter downcomers are used to replace traditional steel frames to form a self-supporting frame system with strong earthquake resistance and 30%~50% less floor space‌;

‌(2) ‌‌High-efficiency heat transfer‌:

Fully enclosed membrane water-cooled walls cover the furnace and flue, and with the flag-type heating surface structure, the thermal efficiency can reach more than 92%, and the exhaust temperature drops to below 120℃‌;
‌

(3) ‌‌Flexible adaptability‌:

Supports multiple fuels such as oil and gas, and the single unit capacity covers 10~220 tons/hour steam or 7~160MW hot water.

(4) Special Boiler R&D Capabilities‌:

With A-class boiler manufacturing qualifications and environmental engineering general contracting qualifications, we possess design experience in special boilers such as waste incineration boilers and pyrolysis furnaces. We can customize corner tube boiler systems for treatment of salt-containing wastewater and chemical waste gas. Our modular design supports rapid expansion (with steam capacities ranging from 5 to 200 tons/hour), reducing installation cycles by 40% and operation and maintenance costs by 30%.

(5) Material and Process Breakthroughs‌:

We utilize nickel-based alloy-coated membrane water-cooled walls that can withstand flue gas temperatures of ≤1200℃, improving sulfur compound corrosion resistance by 2 times and extending service life to ≥15 years. The carbide silicon-lined combustion chamber reduces erosion and wear from high-temperature flue gas on the boiler body.

‌(6) Engineering Experience and Intelligent Operation and Maintenance‌:

We have participated in large-scale projects such as the CNOOC-Shell Polycarbonate Project and the Guangzhou Petrochemical Waste Heat Renovation Project, with a single project steam capacity reaching 1500kW. Dynamic Acquisition of Boiler Operation Parameters；
Enhanced Fault Prediction Accuracy；40% Reduction in Lifecycle O&M Costs.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
