High Temperature Direct Fired Thermal Oxidizer Decomposition Pollution Control Energy Regeneration
Overview:
Modern direct-fired furnaces are deeply integrated with the Internet of Things technology, and fully automated control is achieved through PLC or DCS systems, which monitor the combustion status, temperature curve and energy consumption data in real time. Users can adjust parameters through remote terminals to prevent overload or flameout risks. This intelligent management not only improves safety, but also reduces manual intervention, and is particularly suitable for precision manufacturing fields that require a stable heat source (such as semiconductor packaging and lithium battery drying). At the same time, the fault self-diagnosis function greatly reduces the difficulty of maintenance and downtime.

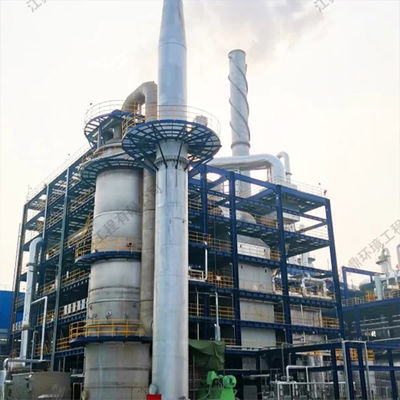

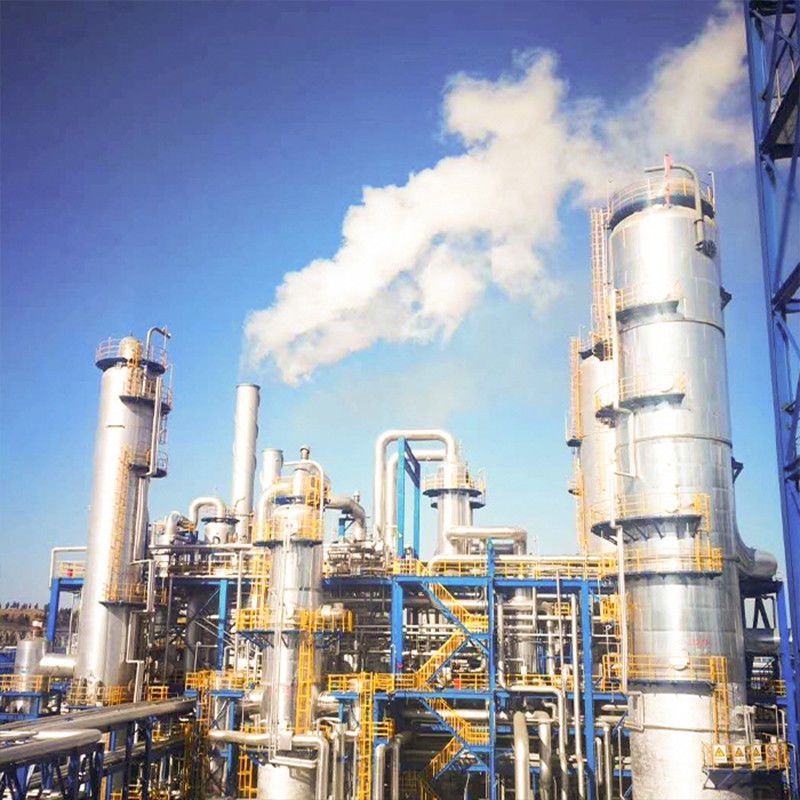

Product Image:
Product Introduction:
The system is a 150,000 ton/year CHP propylene oxide project. It adopts an integrated process of high-temperature oxidation + waste heat cascade utilization for highly complex and high-concentration petrochemical waste gas/wastewater (including propylene derivatives and reaction by-products). Through the thorough decomposition of organic matter at a high temperature of 1200°C, the membrane wall boiler is used to recover heat to produce industrial-grade superheated steam, achieving the dual goals of pollution control and energy regeneration. The system is adapted to my country's first independent CHPPO technology, providing environmental protection technology guarantee for the extension of the propylene oxide industry chain, and the annual steam reuse value exceeds 100 million yuan.
Waste gas treatment capacity: 40,000 Nm³/h (including complex component petrochemical waste gas)
Wastewater treatment capacity: 2.1 t/h (high-concentration organic wastewater)
Superheated steam output: 39 t/h
Steam parameters: 4.0 MPaG, 425°C (directly used in production process)
Floor area: 60m×30m (intensive module design)
Theory:
The Direct Thermal Oxidizer (DTO) first heats the combustion chamber temperature to the set level using fuel. Then, VOCs is introduced into and decompose into CO2 and water at high temperatures, releasing a significant amount of heat. Simultaneously, external equipment such as heat exchangers and boilers recover the thermal energy carried by the purified high-temperature flue gas to achieve energy savings and reduce consumption.
Ruiding can comprehensively design the system based on factors such as the airflow, composition, concentration of the VOCs to be treated, and the desired removal efficiency. Tailored, cost-effective VOCs treatment solutions are provided. When the concentration of the waste gas to be treated is high enough, it's possible to operate without fuel input. The furnace temperature can be maintained by the self-sustaining at moderate Lower Explosive Limits (LELs).
Advantages:
(1) The incinerator can withstand a temperature of ≥1200°C, a residence time of ≥2 seconds, and a decomposition rate of VOCs and toxic byproducts (such as aldehydes) of ≥99.9%. The waste gas/wastewater synergistic treatment solves the problems of "multiphase flow, high salt content, and easy coking" in petrochemical processes.
(2) The thermal efficiency of the membrane wall boiler is ≥85%, and the annual steam output is ≈340,000 tons (4.0MPaG/425°C). It can directly drive production equipment, and the annual energy saving benefits exceed 80 million yuan. The original "economizer + air preheater" multi-stage heat exchange reduces the comprehensive energy consumption by 30% compared with the traditional design.
(3) The flue gas treatment adopts the combination of "bag dust removal + SCR denitrification", with particulate matter <10 mg/m³ and NOx <50 mg/m³, which is better than the special emission limit. The COD removal rate of the wastewater after high-temperature oxidation is ≥99.5%, without the risk of secondary pollution.
(4) Fully automated control, gas consumption <3.5 Nm³/ton steam, operation and maintenance costs reduced by 40%.
(5) Supporting the industrial application of my country's first set of CHPPO technology, solving the environmental protection supporting problems of propylene oxide process. The localization rate of core thermal oxidation equipment is 100%, breaking the cross-technology monopoly.
R&D and Production:
Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.
This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
Related Products:
Main Clients:
Company Introduction:
Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.
Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.
Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
Faq:
1. What is the company's main business?
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) .
2. Do you have industry qualification certification?
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
3. What are the core products?
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?
We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation?
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
