Overview:

The direct-fired furnace has an ingenious structural design, and its compact layout enables it to play the greatest role in a limited space, greatly saving installation space. In terms of operation, it has a high degree of automation and is equipped with a friendly operation interface. Operators only need to make simple settings to complete operations such as starting, stopping, and adjusting parameters of the equipment. In terms of temperature control, it adopts advanced temperature control technology, which can achieve precise control of temperature and ensure the stability and consistency of the heating process. It is widely used in many industries such as chemical, food, and medicine, providing reliable heat source support for production in different fields.

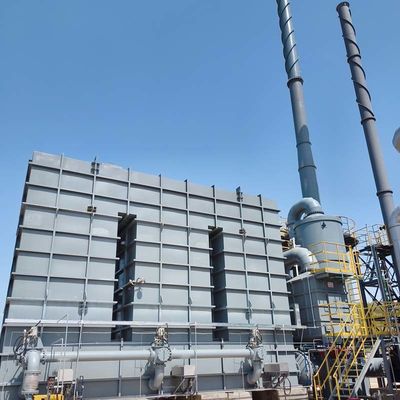

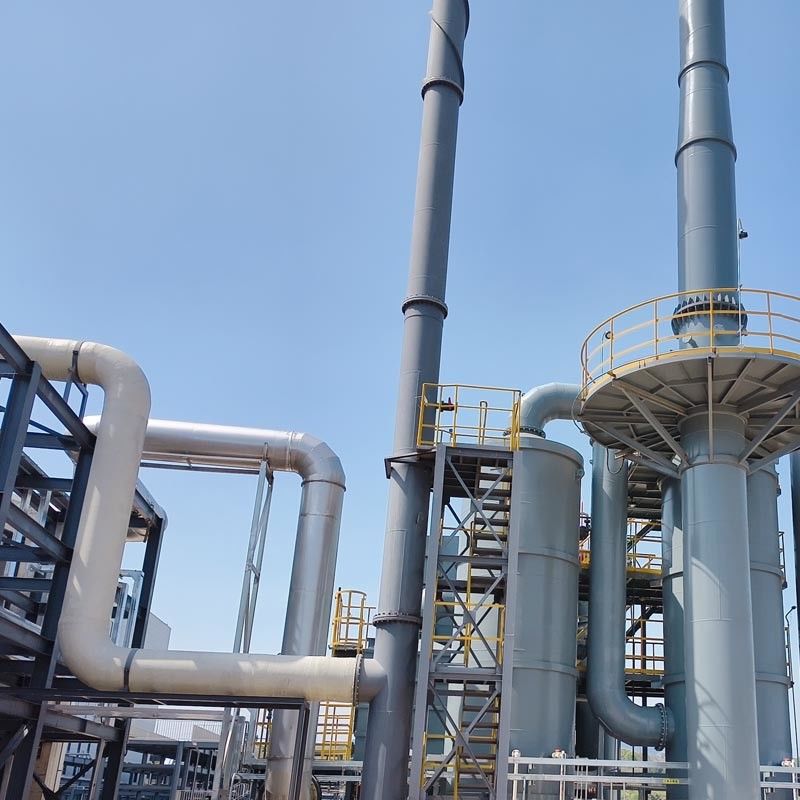

Product Image:

Product  Introduction:

Solution:TO
Pollution Source:Acrylic acid and ester saline wastewater, High calorific waste liquid, High calorific waste gas, Low calorific waste gas.
Capacity:1# Furnace Specification
                    Waste liquid: 1178 kg/h
                    Wastewater: 9000 kg/h
                    Waste gas: 3704 Nm³/h
                2# Furnace Specifications
                    Waste liquid: 2792 kg/h
                    Waste gas: 2673 Nm³/h
                    Wastewater: 3500 kg/h

The Thermal Oxidizer (TO) system is employed for processing high-calorific waste liquids (atomized with 0.5MPaG steam) and low-calorific wastewater (atomized with 0.7MPAG compressed air). The combustion chamber ensures a flue gas residence time of ≥ 2 seconds and maintains a temperature of ≥ 1100 ℃.

The waste heat boiler recovers thermal energy to generate byproduct superheated steam at 4.0MPaG/450℃, incorporating membrane walls, superheaters, economizers, and an air preheater (installed only in Unit #1).

The flue gas treatment system consists of a baghouse filter (with pulse – jet cleaning), selective non-catalytic reduction (SNCR) denitrification (ammonia injection within the 850 – 1050 ℃ temperature range), and an induced draft fan for compliant emissions discharge. The system is designed with reserved interfaces for potential future installations including a quench tower, dry sorbent injection system, and selective catalytic reduction (SCR) unit.

Theory:

The Direct Thermal  Oxidizer (DTO) first heats the combustion chamber temperature to the set level using fuel. Then, VOCs is introduced into and decompose into CO2 and water at high temperatures, releasing a significant amount of heat. Simultaneously, external equipment such as heat exchangers and boilers recover the thermal energy carried by the purified high-temperature flue gas to achieve energy savings and reduce consumption.

Ruiding can comprehensively design the system based on factors such as the airflow, composition, concentration of the VOCs to be treated, and the desired removal efficiency. Tailored, cost-effective VOCs treatment solutions are provided. When the concentration of the waste gas to be treated is high enough, it's possible to operate without fuel input. The furnace temperature can be maintained by the self-sustaining at moderate Lower Explosive Limits (LELs).

Advantages:
(1) High-Efficiency Combustion:

Achieves optimal energy utilization through high-temperature oxidation in the combustion chamber combined with steam recovery via the waste heat boiler.

(2) Low-Emission Control:

Baghouse Filtration ensures dust emissions compliance,SNCR denitrification reduces Nox emissions,precise flue gas temperature regulation maintains optimal reaction conditions.

(3) Modular Design:

Handles Both high- and low- calorific waste liquids/gases in a single system,future-ready interfaces for environmental upgrades (quench tower, SCR, etc.).

(4) Stable Operation:

Guaranteed combustion parameters(such as residence time and temperature),robust equipment selection (refractory materials, corrosion-resistant atomizers) ensures long-term reliability.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
