Clean Energy Regenerative Thermal Oxidizer RTO+TO Modular Regenerative Furnace

Clean Energy Regenerative Thermal Oxidizer High Thermal Efficiency Modular Design

Overview:
The regenerative furnace is an industrial heating equipment with high efficiency and energy saving characteristics. Its core advantage lies in its extremely high thermal efficiency. It stores and releases heat through specially designed regenerative bodies. The use of reversing combustion technology can greatly reduce energy consumption during the operation of the system, while effectively reducing pollutant emissions, especially in the control of nitrogen oxides. The temperature distribution in the furnace is uniform, and the heating process is stable and reliable. It is widely used in many industrial fields such as metallurgy, ceramics, and glass, providing efficient and environmentally friendly solutions for various heating processes.

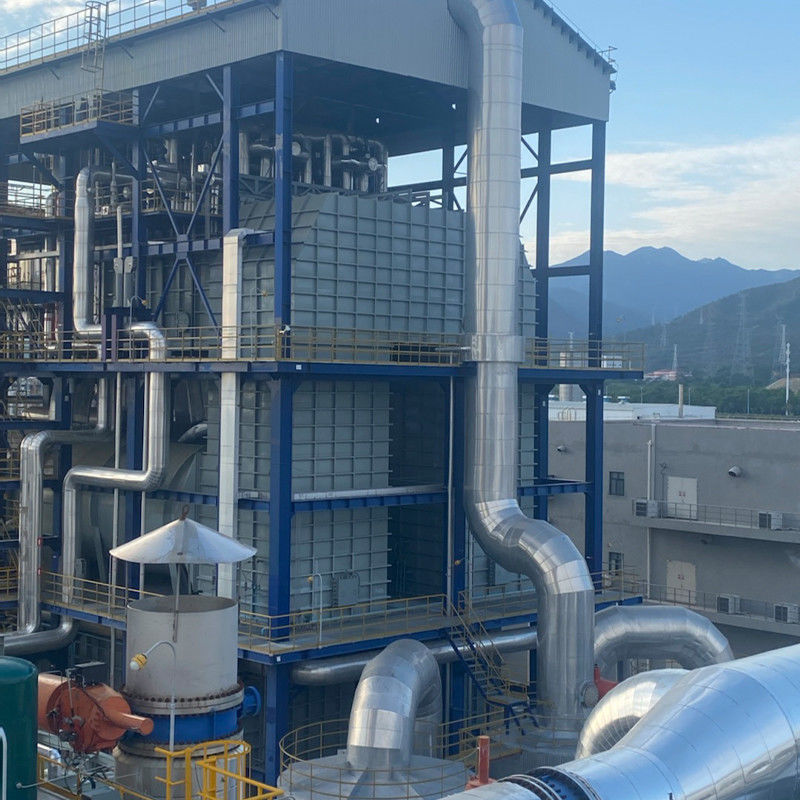

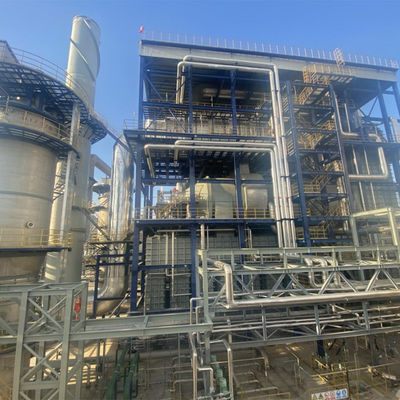

Product Image:

Product Introduction:

Accepted Time:December 2021
Location:Guangdong Huizhou
Solution:Regenerative Thermal Oxidizer
Pollution Source:Off-Gas and Wastewater

The Regenerative Thermal Oxidizer system was specifically designed by Ruiding for Huizhou Yuxin New Materials Co., Ltd. Huizhou Yuxin New Materials Co., Ltd. possesses the world's largest single-set production capacity for maleic anhydride facilities.

This Regenerative Thermal Oxidizer system is capable of processing 150,000 tons of maleic anhydride off-gas and a small amount of waste liquid annually. Ruiding innovatively employs either a standalone Regenerative Thermal Oxidizer (RTO) process or a standalone Thermal Oxidizer (TO) process for off-gas treatment. This marks the world's first adoption of a new process combining "RTO + TO + Waste Heat Recovery System", achieving the largest processing air volume of 480,000 standard cubic meters per single unit and treating 2.5 tons per hour of waste liquid. Additionally, the waste heat recovery system captures residual heat, converting it into saturated steam at a rate of 200 tons per hour, with parameters of 9.45 MPaG and 535°C. This saturated steam is then used to supply heat to the desalination water system.

The system occupies an area of 35*59 meters and includes components such as a mist separator, thermal filter, RTO, spray scrubbing tower, electrostatic precipitator, TO, high-pressure steam superheater, SCR reactor, waste gas preheater, desalination flue gas heat exchanger, chimney, startup fan, reverse draw fan, and combustion system. The combined RTO plus TO unit ensures that the flue gas emissions meet environmental standards.

The project achieved mechanical completion on September 30,2021, and concluded hot state debugging, including furnace drying, on November 10,2021. It officially commenced production and operation in early December 2021.

Theory:
The RTO is comprised of insulated chambers filled with high-temperature ceramic media. During operation, the polluted air enters the oxidizer through an energy recovery chamber, where the ceramic media preheats it before introducing it to the oxidation chamber. As the air moves through the bed, its temperature rises rapidly. The oxidation reaction takes place in the combustion chamber, converting the pollutant-laden air into CO2 and water vapor, releasing a significant amount of thermal energy.

The hot, clean gas exits through the second recovery bed, leaving the heat in the ceramic media. In the next cycle, the process stream flows in reverse, utilizing the stored heat to preheat the incoming air. By periodically switching the inlet, outlet, and purge processes, the flow changes direction in the oxidizer, completing the preheating, oxidation, heat storage, and release stages. This heat storage process allows the thermal energy released during oxidation to be reused, reducing fuel consumption for preheating.

To maintain optimal heat recovery efficiency, the direction of the process stream is regularly switched using automatic diverter valves controlled by the PLC system.

Advantages:
(1) No high-temperature flame combustion zone, flameless combustion, resulting in low combustion noise and uniform temperature inside the furnace. This not only improves purification efficiency but also extends the furnace's lifespan.

(2) PLC automatic combustion control ensures a high level of automation, stable operation, and high safety reliability.

(3) The heat storage chamber utilizes ceramic materials for direct graded heat exchange, leading to a uniform temperature increase. This strengthens heat transfer inside the furnace, allowing for a reduction in the incinerator's volume. This significantly lowers equipment costs, minimizes land footprint, and maximally reduces construction and installation expenses.

(4) Ruiding's designed RTO employs an innovative three-chamber heat storage system, providing a furnace with high radiation temperature and pressure, rapid heating, remarkable low-temperature heat exchange effects, and maximum recovery of sensible heat in combustion products. The result is high thermal efficiency, low exhaust temperatures, and notable energy savings.

(5) Ruiding possesses a technologically advanced engineering analysis service laboratory equipped with cutting-edge equipment. This laboratory can analyze and detect various critical parameters of hazardous waste, offering customers exclusive solutions tailored to their specific needs and waste conditions.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
