Intelligent Control Regenerative Thermal Oxidizer High Temperature Resistant Reduce Heat Loss

Intelligent Control Regenerative Thermal Oxidizer High Temperature Resistant Reduce Heat Loss

Overview:

It adopts heat storage combustion technology (RTO/RHT), decomposes harmful gases through high-temperature oxidation, and reduces nitrogen oxide (NOx) emissions, meeting strict environmental standards, and is an ideal choice for the chemical and coating industries. Designed specifically for industrial furnaces above 1200°C, the honeycomb ceramic heat storage body quickly absorbs flue gas heat and then transfers it to cold air to achieve high-temperature stable output, and is widely used in metallurgical heating furnaces, forging furnaces and other scenarios.

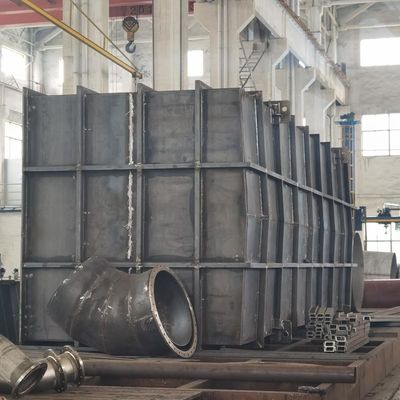

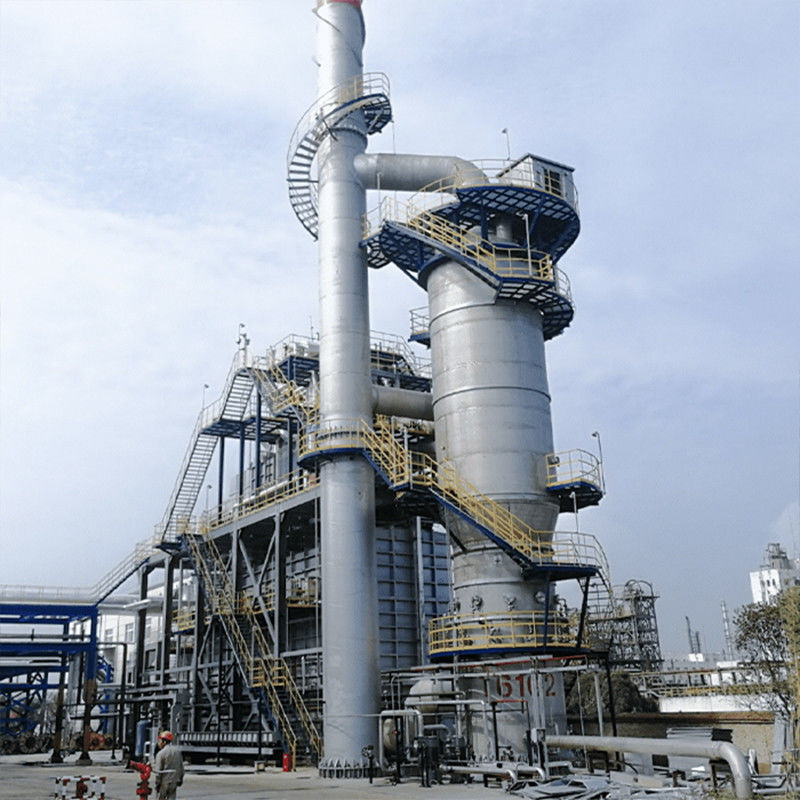

Product Image:

Product Introduction:

The system is customized for the world's largest single maleic anhydride production unit (Huizhou Yuxin). It is the first in the world to adopt the "RTO+TO+waste heat cascade utilization" process chain for high-flow, low-concentration VOCs waste gas and organic waste liquid. The waste gas is pre-decomposed by RTO thermal storage oxidation (heat recovery rate ≥ 95%), and the TO high-temperature incineration (800-1000°C) strengthens the treatment of difficult-to-degrade components. Combined with ultra-high-pressure steam co-production (9.45MPaG), the waste gas/waste liquid is simultaneously harmless and energy-based. The system integrates desalination heat exchange, SCR denitrification and other modules. The incineration tail gas is discharged in compliance with the standards after multi-stage purification. The waste heat steam is directly reused in the production link, forming a "pollution control-energy regeneration-process heating" closed loop. The annual steam supply value of a single system exceeds 100 million yuan.

Waste gas treatment capacity: Single unit treatment capacity ‌480,000 Nm³/h‌ (world's largest single unit air volume)
Waste liquid treatment capacity: ‌2.5 t/h‌ (including organic waste liquid)
Annual treatment scale: ‌150,000 tons‌ of maleic anhydride waste gas and supporting waste liquid
Steam production: ‌200 t/h‌ (high-pressure saturated steam)
Steam parameters: ‌9.45 MPaG, 535°C‌ (directly used for heating of desalted water system)
Site area‌: 35m×59m (highly intensive layout)
Pretreatment: demister, hot filter, spray scrubber
Oxidation unit: RTO (regenerative thermal oxidizer) + TO (thermal incinerator)
Post-treatment: electrostatic precipitator, SCR reactor, desalination flue gas heat exchanger
Emission standards‌: in line with China's "Comprehensive Emission Standards for Air Pollutants" (GB 16297-1996) and EU limits

Theory:
The RTO is comprised of insulated chambers filled with high-temperature ceramic media. During operation, the polluted air enters the oxidizer through an energy recovery chamber, where the ceramic media preheats it before introducing it to the oxidation chamber. As the air moves through the bed, its temperature rises rapidly. The oxidation reaction takes place in the combustion chamber, converting the pollutant-laden air into CO2 and water vapor, releasing a significant amount of thermal energy.

The hot, clean gas exits through the second recovery bed, leaving the heat in the ceramic media. In the next cycle, the process stream flows in reverse, utilizing the stored heat to preheat the incoming air. By periodically switching the inlet, outlet, and purge processes, the flow changes direction in the oxidizer, completing the preheating, oxidation, heat storage, and release stages. This heat storage process allows the thermal energy released during oxidation to be reused, reducing fuel consumption for preheating.

To maintain optimal heat recovery efficiency, the direction of the process stream is regularly switched using automatic diverter valves controlled by the PLC system.

Advantages:
(1) ‌The air volume of a single RTO is 480,000 Nm³/h, which is the largest scale in the world and is suitable for the needs of chemical plants of one million tons. The waste liquid and waste gas are treated in coordination, and the compatibility covers process derivatives such as maleic anhydride and phthalic anhydride.
‌
(2) ‌The original 9.45MPaG/535°C high-pressure steam co-generation technology improves the heat recovery efficiency by 25% compared with the conventional system, and the steam can directly drive industrial turbines or process heating.

‌

(3) ‌Adopting RTO+TO process coupling technology, RTO pre-oxidation reduces TO fuel consumption, the comprehensive VOCs removal rate is ≥99.5%, and NOx emissions are <50 mg/m³. The SCR denitrification system uses a low-temperature catalyst (180-300°C) to adapt to flue gas temperature fluctuations, and the ammonia escape rate is <3 ppm.
‌
(4) ‌The modular layout saves space, and the supporting intelligent control system realizes unattended operation. The technology has been extended to many leading enterprises, with a cumulative reduction of VOCs by more than 500,000 tons/year.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
