Waste Heat Recovery Water Tube Steam Boiler Precise Thermal Classification Low Exhaust Gas Temperature

Waste Heat Recovery Water Tube Boiler Precise Thermal Classification Low Exhaust Gas Temperature

Overview:
The modular boiler adopts a multi-stage heat exchange structure (a hierarchical heat exchange system integrating evaporators and economizers) and a steam temperature control unit (coordinated adjustment of two-stage superheaters + spray water desuperheaters). Through the precise design of thermal classification, the waste heat is efficiently recovered and the exhaust gas temperature is significantly reduced. Its ash cleaning system combines shock wave and sound wave dual-mode technology with a modular open-air layout to effectively suppress dust accumulation and reduce heat transfer efficiency attenuation, ensuring long-term and efficient operation of the heating surface.

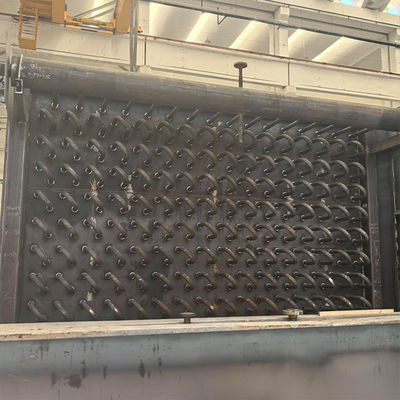

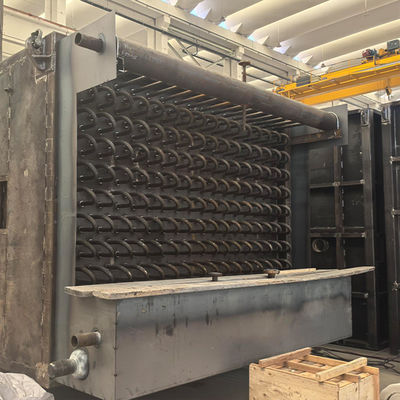

Product Image:

Product Introduction:

This modular boiler is specially customized for high-temperature and high-dust scenarios in refineries. It adopts a five-stage evaporator + four-stage economizer cascade heat exchange system (flue gas flow rate 297,990 Nm³/h, exhaust temperature ≤190℃), which can achieve a 30% increase in waste heat recovery efficiency; through the coordinated control of the two-stage superheater + water spray desuperheater (steam temperature accuracy ±2℃), it ensures the continuous and stable output of 11MPa/520℃ high-pressure steam; the innovative shock wave/sonic wave dual-mode soot blowing system (ash cleaning coverage ≥95%) combined with a modular open-air layout can reduce the heat transfer efficiency attenuation rate to <5%, adapting to the 7×24-hour full-load operation of the refinery.

Technical Specifications:

Advantages:

This modular water tube boiler realizes the coordinated utilization of high calorific value fuel and industrial waste gas through a multi-stage waste heat cascade recovery architecture (the utilization rate of flue gas waste heat is increased by 30%, and an integrated evaporator-superheater-economizer three-stage heat exchange system) combined with an intelligent PID steam temperature control algorithm (dynamically adjusts the water spray volume and combustion load, and the temperature fluctuation is ±2°C); its self-cleaning spiral heat exchange tube group (nano-coating + shock wave soot blowing dual-effect anti-ash deposition technology) and modular quick-installation design (single module replacement takes less than 3 hours) suppress the long-term operation heat transfer efficiency attenuation rate to less than 5%, which is suitable for biomass power generation, chemical parks and other scenarios, and provides a modular thermal solution for steam power systems with efficient recovery, precise temperature control, and long-term stability.

Applcation:
It is especially suitable for installation environments with limited space, such as industrial production steam supply, where rapid response to load changes is required.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
