High Flexibility Falling Film Evaporators Countercurrent Heat Exchange Even Distribution of Liquid Film
Overview:
Falling film plate heat exchanger is an ideal choice for energy saving and consumption reduction. Its efficient heat transfer performance and low resistance operation characteristics make heat exchange more sufficient and energy consumption is greatly reduced. Through optimized countercurrent layout and uniform liquid film distribution, the heat exchanger can make full use of thermal energy and improve heat recovery efficiency, playing an important role in the field of industrial waste heat recovery. Compared with traditional heat exchangers, it can save a lot of energy, not only reducing the operating costs of enterprises, but also contributing to energy conservation, emission reduction and green development.

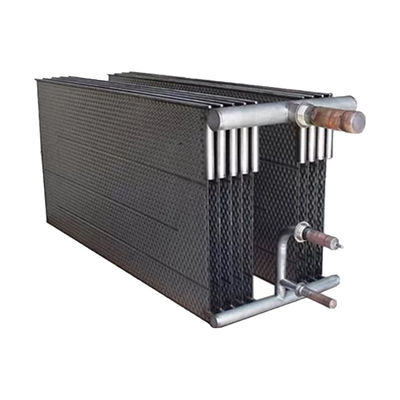

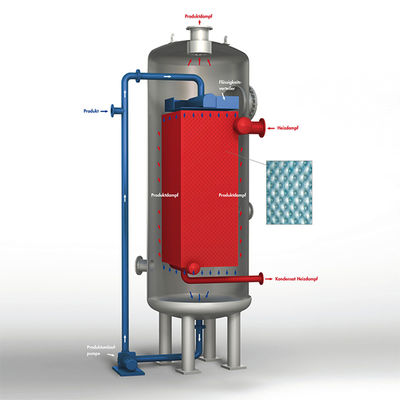

Product Image:
Brief Introduction:
Duplex steel DSS2205 material: Chloride ion corrosion resistance is 50% higher than SUS304, suitable for acidic solvent (pH 1-3) concentration.
Wide flow channel anti-blocking design: The plate spacing of the falling film plate heat exchanger is customized to 15mm (10mm in the industry), and the treatment efficiency of high-viscosity waste liquid (such as resin waste liquid) is increased by 30%.
Fully welded sealing solution: leakage rate <0.01%, in line with ASME BPE standards, and resistant to long-term corrosion by organic solvents.
Advantages:
(1) Improved resistance to chloride ion corrosion:
suitable for pH 1-3 strong acid media.
(2) Wide flow channel anti-blocking design (plate spacing 15mm):
The treatment efficiency of high-viscosity waste liquid (such as resin) is increased by 30%; Fully welded sealing solution makes the leakage rate <0.01%, in line with ASME BPE standards, and the life is extended by 30%.
(3) Applicable scenarios:
chemical waste liquid recovery, corrosive solvent concentration.Corrosion resistance + anti-blocking, breaking through the bottleneck of evaporator life in the chemical industry.
Applcation:
(1) Water is evaporated to concentrate fruit juices
(2) Used for concentrating milk, whey, or other liquids
(3) Concentrating syrups, glucose solutions, or other sweeteners.
(4) Recovering organic solvents from waste liquids.
(5) Concentrate chemicals that are prone to decomposition or sensitive to high temperatures
(6) Reducing the volume of industrial wastewater by evaporating water.
(7) Concentrating medicinal liquids.
R&D and Production:
Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.
This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
Related Products:
Main Clients:
Company Introduction:
Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.
Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.
Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
Faq:
1. What is the company's main business?
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) .
2. Do you have industry qualification certification?
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
3. What are the core products?
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?
We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation?
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
