High Performance dimple steel plate Superior Heat Exchange Efficiency Laser Welding

High Performance Pillow Plates Superior Heat Exchange Efficiency Laser Welding

Overview:
Pillow Plates, also known as Dimple Plates or Bulged Plates, are specialized heat exchange surfaces designed for a variety of industrial applications. These plates are fabricated through an innovative inflation process where two thin metal sheets are spot-welded together across their entire surface using either laser or resistance welding techniques. The edges of the pillow plates are sealed by seam welding, except for the areas designated for connecting ports. Subsequently, the space between these metal sheets is pressurized with hydraulic fluid, causing them to deform and form their characteristic wavy or dimpled surface.

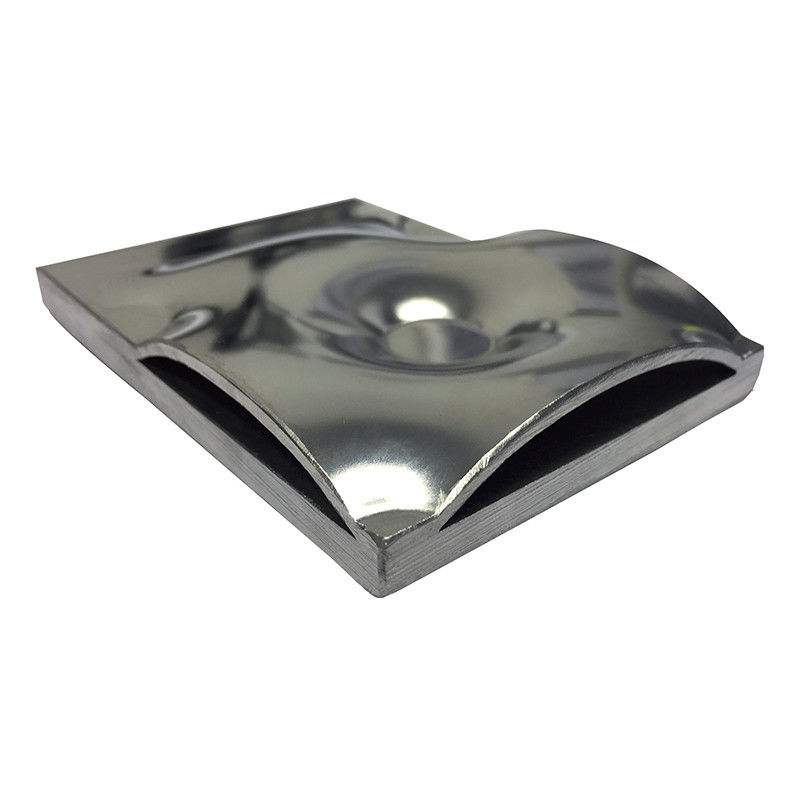

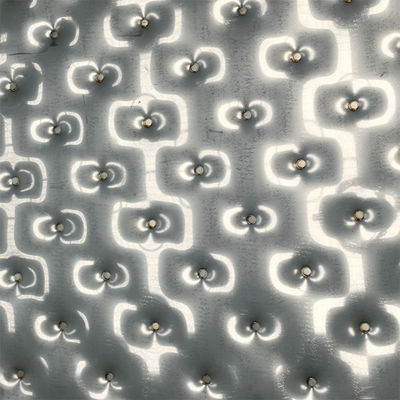

Product Image:

Brief  Introduction:

The improved and upgraded bulging plates are welded into wide channel plate heat exchangers for use in salty wastewater incineration devices. Since the wastewater contains a large amount of inorganic salts, high concentrations of dust are generated in the flue gas after incineration, and the salt easily corrodes metal materials. The wide channel plate heat exchanger used in this situation effectively controls the dust accumulation problem on the flue gas side of the heat exchanger by controlling the flue gas side spacing, plate height, etc.

Product Parameters:

Advantages:
(1) ‌High dust and high temperature adaptability‌:
‌The flue gas inlet temperature is 479℃‌, and the outlet temperature drops to 348℃. The plate material S30408 ​​is resistant to high temperature oxidation. The wide channel design (control of the flue gas side spacing) effectively alleviates the deposition of high-concentration dust (generated by incineration salt) and reduces the risk of blockage.The cold side air is heated to 317℃‌, and the heat load is 2400kW, achieving efficient waste heat recovery and improving system energy efficiency.

(2) Salt corrosion resistance and low resistance design‌:
‌S30408 ​​stainless steel material‌ can withstand chloride ion corrosion from salt-containing flue gas and extend the life of the equipment.The hot side resistance is only 400Pa‌, and the wide channel reduces the impact of dust accumulation on pressure drop, ensuring smooth flow of flue gas.

‌

(3) Large-flow flue gas treatment capacity‌:
‌The flue gas flow rate is 31,000 Nm³/h‌. By optimizing the plate height and flow channel width, stable operation is ensured under high dust media. The cold side air flow rate is 20,820 Nm³/h to match the heat recovery requirements.

Applcation:
(1) Dimple Jacket

(2) Clamp-on heat exchanger

(3) Pillow Plate Type Falling Film Chiller

(4) Ice Bank for for Ice Thermal Storage

(5) Static Melting Crystallizer

(6) Sewage Water Heat Exchanger

(7) Heat Sink Heat Exchanger

(8) Evaporative Plate Condenser

(9) Dimpled Tank

(10) Immersion Heat Exchanger

(11) Flue Gas Heat Exchanger

(12) Reactor Intermal Baffles Heat

(13) Bulk Solid Heat Exchanger

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
