Overview:
Designed for high-energy-consuming industrial scenarios, it uses ceramic honeycomb heat storage technology and converts waste gas heat energy for reuse through a waste heat recovery system, increasing thermal efficiency to more than 85%. It is suitable for high-temperature industries such as metallurgy and glass manufacturing, significantly reducing fuel consumption and carbon emissions, and achieving a win-win situation for production and environmental protection.

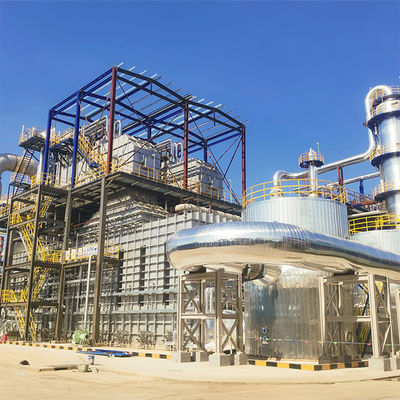

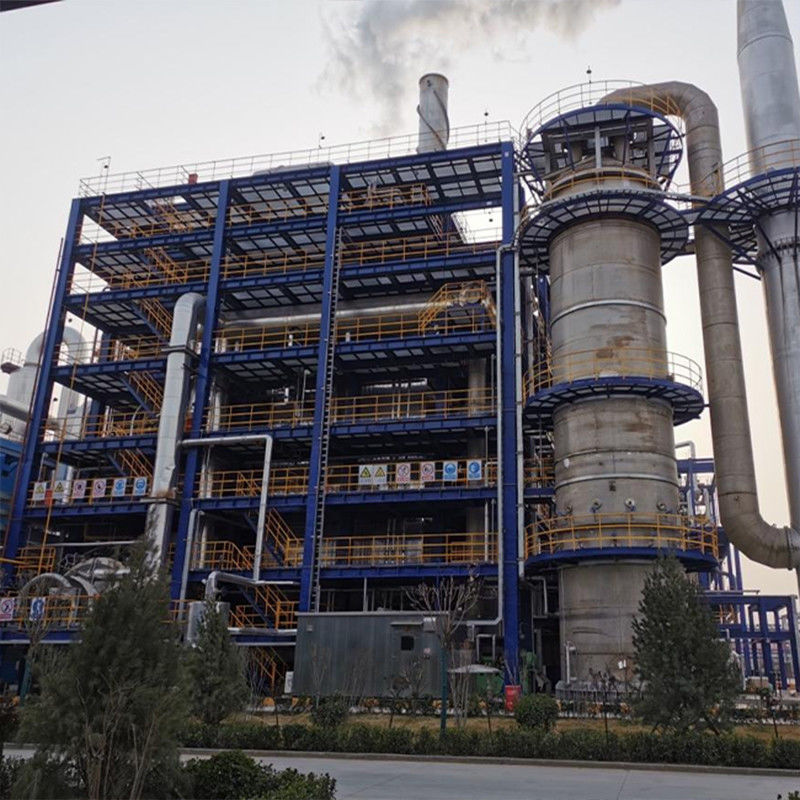

Product Image:

Product Introduction:

Solution:RTO
Pollution Source:MMA
Capacity:71603Nm³/h

This integrated incineration system supports a 100,000 TPY methyl methacrylate (MMA) production facility, processing:
(1) Concentrated process wastewater: 9600 kg/h
(2) Biochemical wastewater: 3000 kg/h
(3) Heavy component waste liquid: 1264kg/h with incineration temperatures of 950~1100℃

Flue gas treatment includes:
(1) Heat recovery via waste heat boiler + high– temperature plate heat exchanger.
(2) SNCR denitrification (ammonia/urea injection).
(3) Quench tower + semi-dry acid removal + dust filtration for compliant emissions.
(4) By produces 22 t/h of 4.3MPaG/435℃ superheated steam for process reuse.

The system comprises a waste liquid incinerator, heat recovery unit, SNCR denitrification system, semi-dry scrubber, wastewater stripping column, induced draft fan and exhaust stack, with a total footprint of 60m x 30m.

Theory:
The RTO is comprised of insulated chambers filled with high-temperature ceramic media. During operation, the polluted air enters the oxidizer through an energy recovery chamber, where the ceramic media preheats it before introducing it to the oxidation chamber. As the air moves through the bed, its temperature rises rapidly. The oxidation reaction takes place in the combustion chamber, converting the pollutant-laden air into CO2 and water vapor, releasing a significant amount of thermal energy.

The hot, clean gas exits through the second recovery bed, leaving the heat in the ceramic media. In the next cycle, the process stream flows in reverse, utilizing the stored heat to preheat the incoming air. By periodically switching the inlet, outlet, and purge processes, the flow changes direction in the oxidizer, completing the preheating, oxidation, heat storage, and release stages. This heat storage process allows the thermal energy released during oxidation to be reused, reducing fuel consumption for preheating.

To maintain optimal heat recovery efficiency, the direction of the process stream is regularly switched using automatic diverter valves controlled by the PLC system.

Advantages:
(1) Co-processing Efficiency:

Simultaneous treatment of wastewater + waste liquids with guaranteed emission compliance.

(2) Energy Circularity:

Generates 22 t/h of high-pressure superheated steam as a byproduct, directly fed back into the production process.

(3) Advanced Heat Utilization:

Dual-stage energy recovery (waste heat boiler + High-temperature plate exchanger) achieves high thermal efficiency, maximizing energy reuse.

(4) Space-Optimized Layout:

Space-optimized layout (1800 m2 footprint) with modular components, specifically engineered for restricted plant areas.

(5) Multi-Stage Purification:

Integrated SNCR denitrification + Quench cooling + semi-dry deacidification + dust removal, complies with stringent environmental standards.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
