Overview:

By using the low electricity price period to store heat, the factory can be provided with a 24-hour stable heat source. The high-temperature phase change material is used to store heat, and the output temperature is high, which is suitable for the heating needs of injection molding, food drying and other processes, balancing the grid load and significantly saving electricity costs.

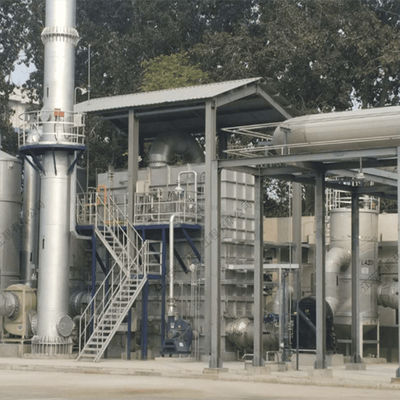

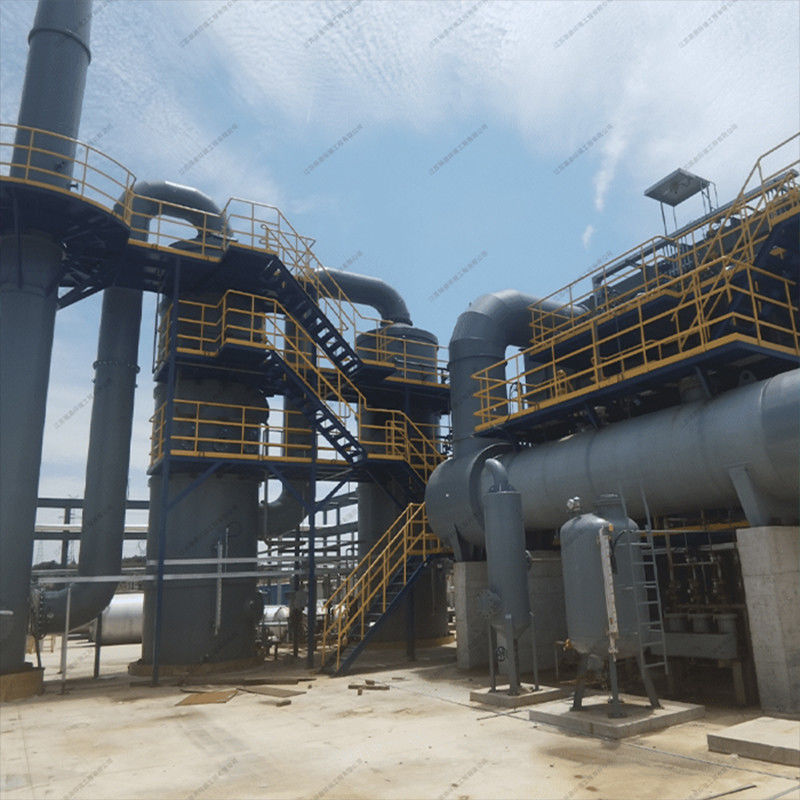

Product Image:

Product Introduction:

Solution:RTO
Pollution Source:Medical waste gas
Capacity:30000Nm³/h

This device is the core facility for waste gas treatment in the pharmaceutical plant area, with a treatment capacity of 30,000 Nm³/h, and is suitable for process waste gas with a concentration of 1,000~5,000 mg/Nm³ and violent fluctuations.

The three-chamber regenerative thermal incinerator (RTO) is used as the core equipment. The waste gas is preheated (760°C), oxidized and decomposed (800°C), regenerative heat exchange and temperature adjustment by G-L heat exchanger, and then combined with secondary spray washing, deacidification and demisting to meet the emission standards.

The system includes flame arrester, regenerative chamber, thermal oxidation chamber, spray tower, fan and chimney. It completely relies on self-sustaining combustion of waste gas during operation, and no natural gas supplement is required.

Theory:
The RTO is comprised of insulated chambers filled with high-temperature ceramic media. During operation, the polluted air enters the oxidizer through an energy recovery chamber, where the ceramic media preheats it before introducing it to the oxidation chamber. As the air moves through the bed, its temperature rises rapidly. The oxidation reaction takes place in the combustion chamber, converting the pollutant-laden air into CO2 and water vapor, releasing a significant amount of thermal energy.

The hot, clean gas exits through the second recovery bed, leaving the heat in the ceramic media. In the next cycle, the process stream flows in reverse, utilizing the stored heat to preheat the incoming air. By periodically switching the inlet, outlet, and purge processes, the flow changes direction in the oxidizer, completing the preheating, oxidation, heat storage, and release stages. This heat storage process allows the thermal energy released during oxidation to be reused, reducing fuel consumption for preheating.

To maintain optimal heat recovery efficiency, the direction of the process stream is regularly switched using automatic diverter valves controlled by the PLC system.

Advantages:
(1) ‌Zero energy consumption operation‌:

Use the self-ignition of exhaust gas to maintain the oxidation temperature, without natural gas consumption.
‌

(2) ‌High fluctuation adaptability‌:

The excess heat is regulated by the G-L heat exchanger to ensure the safety of the heat storage body (the bottom does not overheat).

‌(3) ‌Efficient treatment‌:

The organic components are completely oxidized and decomposed, and the secondary spraying ensures the removal of acid mist and the emission of particulate matter meets the standards.
‌

(4) ‌Structural stability‌:

The three-chamber heat storage incinerator is designed to optimize the heat balance and cope with rapid concentration fluctuations.
