Catalytic Reaction Regenerative Catalytic Oxidizer Low Energy Consumption High Efficiency Heat Storage
Overview:
The thermal storage catalytic furnace is an advanced device that combines efficient heat storage and catalytic reaction technology. Its core is to efficiently recycle heat through the thermal storage body, greatly reducing energy consumption. At the same time, with the help of the catalyst, it promotes the catalytic oxidation reaction of organic waste gas and other pollutants to achieve a high purification rate. The equipment operates stably and reliably, adopts an automated control system, and can automatically adjust the operating parameters according to different working conditions. It is suitable for waste gas treatment scenarios in multiple industries such as chemical, coating, and printing. While achieving environmental protection standards, it significantly reduces the energy consumption costs of enterprises.

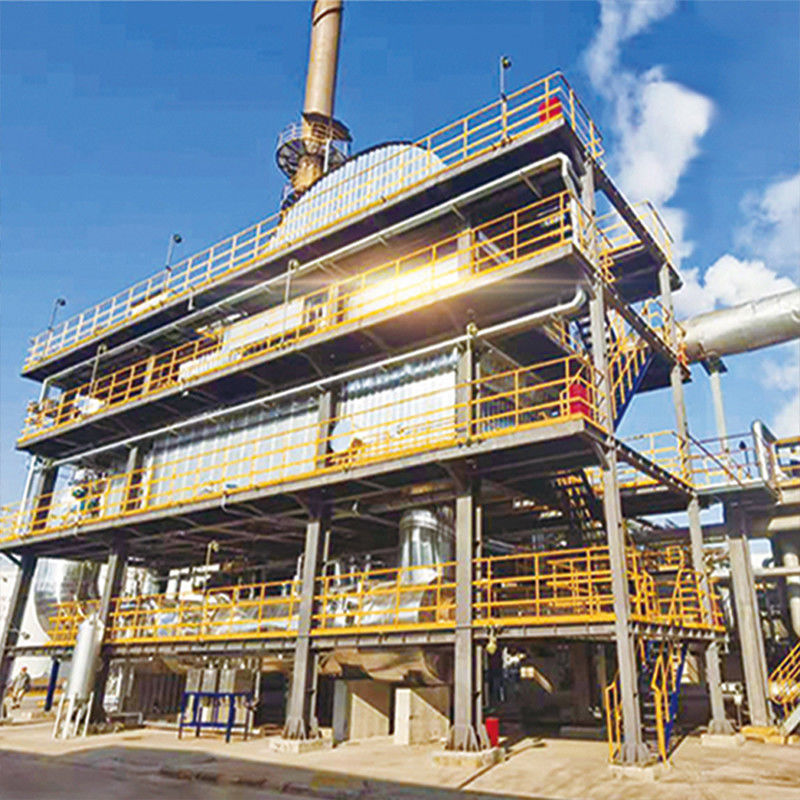

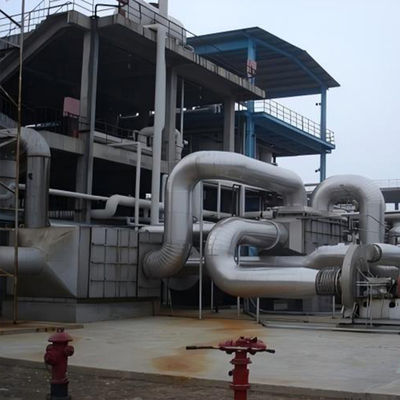

Product Image:
Product Introduction:
Parameter/Component:Specification
Design treatment capacity:17,000 Nm³/h (normal cubic meters per hour at 0°C, 1 atm)
Inlet VOC concentration:2,000 mg/Nm³ (typical for medium-concentration industrial emissions)
Major equipment:Water seal tank (with integrated demisting section)
Flue gas diversion channel (equipped with electric heater)
Regenerative catalytic oxidizer (RCO) (ceramic-packed beds + Pt/Pd catalyst)
The untreated waste gas first passes through a pre-stage water seal tank (equipped with a demisting section) to remove moisture and particulate matter. It is then pressurized by a waste gas fan and directed through a flame arrester into the ceramic heat storage layer of the regenerative chamber, where it is preheated to approximately 350 °C.
The preheated gas enters the catalytic layer, where organic components undergo complete oxidation and decomposition under the catalytic action of the catalyst. An electric heating device in the flue gas diversion channel ensures the outlet temperature from the catalytic bed reaches 400 °C, guaranteeing thorough destruction of organic pollutants.
The resulting flue gas is secondarily distributed through the diversion channel into another set of regenerative chambers, where it exchanges heat with ceramic heat storage packing. After heat recovery, the cooled flue gas is discharged through a chimney into the atmosphere, meeting emission standards.
Theory:
The Regenerative Catalytic Oxidizer (RCO) uses two insulated chambers filled with high-temperature ceramic media. During operation, the process stream enters an energy recovery chamber, where ceramic media preheats it before introducing it to the oxidation chamber. As the stream moves through the inlet bed, its temperature rises.
After oxidation in the combustion chamber through the catalyst, pollutants turn into CO2 and water vapor, releasing thermal energy. The clean gas exits through the second recovery bed, leaving heat in the ceramic media to preheat the inlet stream in the next cycle.Combining the catalyst and ceramic media, RCO significantly reduces fuel consumption during thermal oxidation and preheating, resulting in lower operating costs.
Advantages:
(1) Regenerative Catalytic Oxidizer (RCO), combining functions of regenerative thermal oxidization (RTO) and catalytic oxidation (CO) technologies, which could effectively eliminate various VOCs. It boasts advantages such as a simple process flow, compact equipment design, and reliable operation.
(2) Regenerative Catalytic Oxidizer (RCO) exhibits high purification efficiency and low operational costs.
(3) The entire process generates no wastewater, and pollutants such as NOx.
(4) Regenerative Catalytic Oxidizer (RCO) design by Ruiding is usually conjunction with waste heat boilers, allowing excess heat to generate steam for production purposes, achieving energy-saving objectives.
