Overview:

From the application point of view, the bulging plate has appeared in many industries. In the field of electricity, it is used in the waste heat deep utilization device of large coal-fired units, which effectively solves the difficult problems of wear, corrosion, blockage, leakage and so on in the traditional tubular flue gas waste heat utilization device. The specially designed wide flow channel self-cleaning plate ensures the equipment to have efficient and stable heat exchange for a long period of time. At the same time, its application scope is constantly expanding. The application of bulging plates can be seen in small and medium-sized coal-fired units, non-electric fields such as orc waste heat power generation, industrial refrigerant cooling, and even radiators and evaporators in the new energy and new energy storage markets, which has broad market prospects.

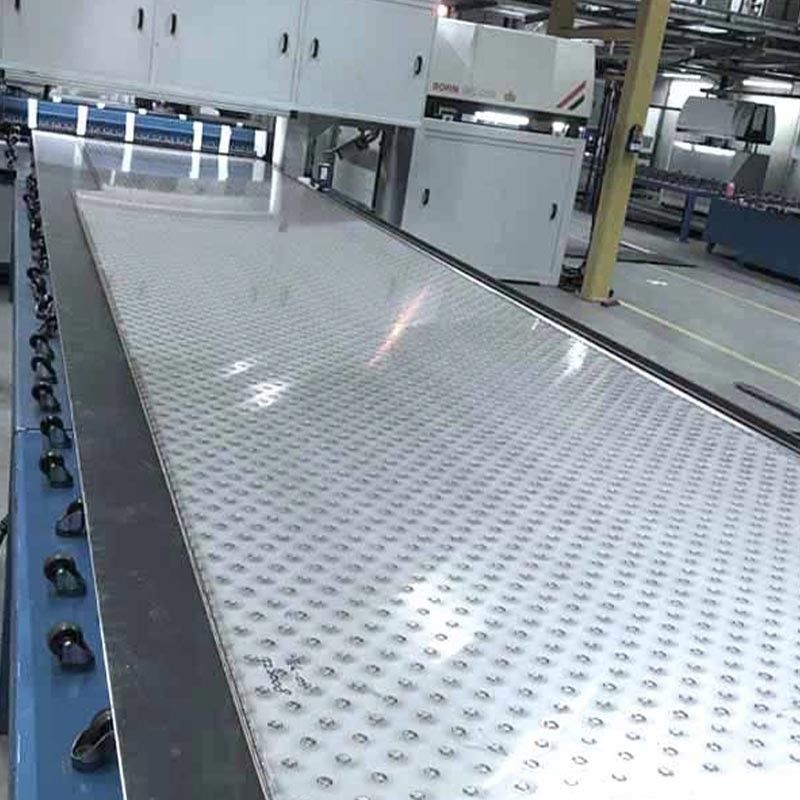

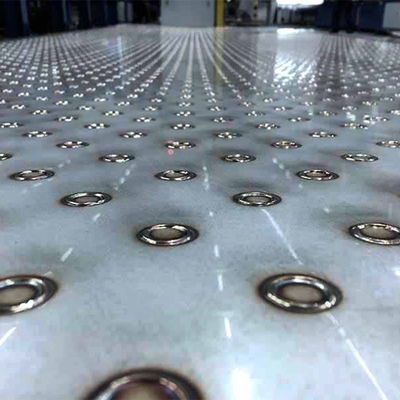

Product Image:

Brief  Introduction:

In view of the characteristics of flue gas from high-salt wastewater incineration (containing 3-5 times the amount of sodium chloride/sulfate particles as conventional dust, which is prone to Cl⁻ stress corrosion), the modular plate heat exchanger improves the bulging plates and optimizes the flow channel design (channel height 25-35mm, corrugated plates 30°-45° overlap), increasing the dust flow rate to 0.8-1.2m/s (supercritical value 0.5m/s), achieving a reduction in deposition rate of more than 60%.

Product Parameters:

Advantages:
(1) ‌Adaptation to medium and high temperature dust and corrosive media‌:
‌Flue gas inlet 458℃‌, outlet 338℃, S30408 ​​material resistant to high temperature salt corrosion, wide channel design to avoid dust caking, suitable for complex media after waste liquid incineration.Cold side air temperature rises to 220℃‌ (heat load 1380kW), significantly reducing subsequent treatment energy consumption.

‌

(2) ‌Medium flow and resistance balance optimization‌:
‌Flue gas flow 28,446 Nm³/h‌, cold side 25,400 Nm³/h, flow channel design takes into account dust passability and heat exchange efficiency.Hot side resistance 300Pa, cold side 1000Pa‌, pressure drop balance is achieved through plate corrugation optimization, reducing fan energy consumption.

‌

(3) ‌Long-term operation stability‌:
The wide channel reduces the cleaning frequency, combined with the corrosion resistance of S30408, reduces maintenance costs, and is suitable for continuous production of chemical wastewater scenes.

Applcation:
(1) Dimple Jacket

(2) Clamp-on heat exchanger

(3) Pillow Plate Type Falling Film Chiller

(4) Ice Bank for for Ice Thermal Storage

(5) Static Melting Crystallizer

(6) Sewage Water Heat Exchanger

(7) Heat Sink Heat Exchanger

(8) Evaporative Plate Condenser

(9) Dimpled Tank

(10) Immersion Heat Exchanger

(11) Flue Gas Heat Exchanger

(12) Reactor Intermal Baffles Heat

(13) Bulk Solid Heat Exchanger

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
