Anti Vibration Gas To Gas Pillow Plate Heat Exchanger Modular Design Efficient Heat Transfer

Efficient Heat Transfer Gas to Gas Pillow Plate Heat Exchanger Modular Design Anti Vibration

Overview:

The heat exchanger is a leader in the field of gas-to-gas heat exchange with its perfect combination of low flow resistance and high heat transfer coefficient. The streamlined design of the pillow-shaped plate effectively reduces the gas flow resistance and reduces the fan energy consumption, while enhancing the turbulence level and making the heat transfer more sufficient. The equipment is equipped with a precise temperature control system that can monitor and adjust the temperature of the two airflows in real time to ensure the stability of the process. Its detachable structure facilitates regular cleaning and maintenance, prevents scaling on the plate surface from affecting the heat exchange effect, and extends the service life of the equipment.

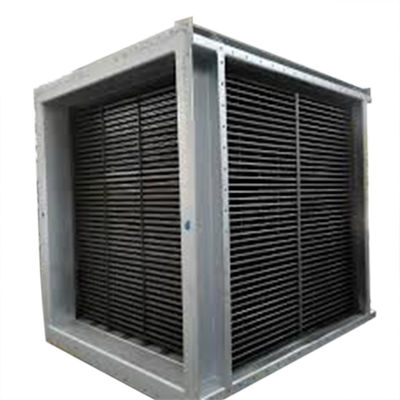

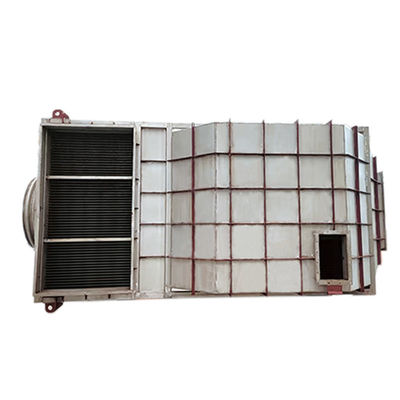

Product Image:

Product  Introduction:

This project utilizes our company’s catalytic oxidation system, with the wide-channel plate heat exchanger serving as one of the core components.

The cold side of the heat exchanger is waste gas, which contains propylene, propane, formaldehyde, acetaldehyde, acrolein, acetic acid, acrylic acid, etc., and the hot side is hot flue gas. Since the catalyst is very sensitive to the reaction temperature, deviation from the temperature range will lead to failure to react or inadequate reaction; in this project, the wide channel plate heat exchanger stabilizes the temperature before and after the catalytic reaction within ±2°C of the design temperature.

Product Parameters:

Advantages:
(1) Laser Welded process provides high quality welding seam.

(2) The inflated channels create high turbulence flow to achieve high heat transfer efficiency.

(3) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others.

(4) Custom-defined size and shape are available.

(5) Special designed pillow plates ensure low inner channel pressure drop.

(6) Wide outer channels result in Low pressure drops, and make dust not prone to accumulate.

(7) Full welded channels ensure good seal performance.

Applcation:
(1) Preheat combustion air with exhausting gas

(2) Recovery heat of exhausting gas

(3) Heat exchanger between gas&gas or air&air

(4) Heat exchanger for chemical reaction of gaseous medium

(5) Waste gas heat exchanger
