Compact Design Gas To Air Plate Heat Exchanger S30408 Low Flow Resistance

Compact Design Gas to Gas Pillow Plate Heat Exchanger Corrosion Resistant Low Flow Resistance

Overview:

The air-to-air pillow plate heat exchanger has revolutionized the traditional air-to-air heat exchange mode with its unique pillow plate structure. The special concave-convex design of the plate greatly increases the heat exchange area, and with the efficient countercurrent or cross-current heat exchange principle, it significantly improves the heat transfer efficiency. The equipment is made of corrosion-resistant materials and can still operate stably in highly corrosive environments such as chemical industry and metallurgy. The modular combination design facilitates flexible adjustment of the heat exchange scale, whether it is small-scale process gas heat exchange or large-scale industrial tail gas waste heat recovery.

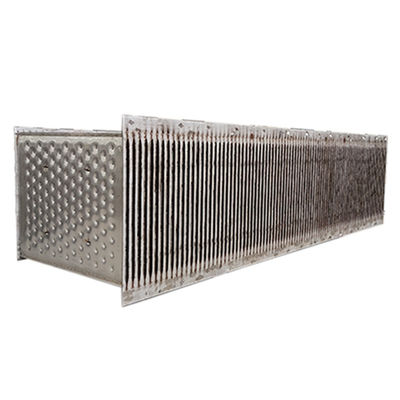

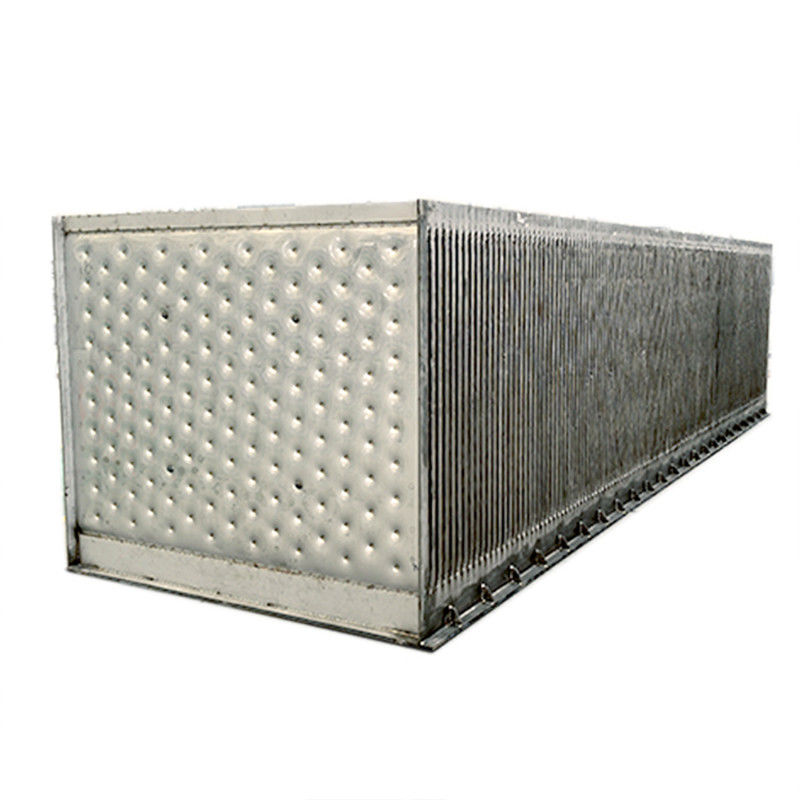

Product Image:

Product  Introduction:

This project adopts Ruiding’s salt-containing wastewater incineration system. Since the incinerated materials contain inorganic salts, the result flue gas exhibits both high dust concentration and corrosive properties that can damage metal components.

The GGH heat exchanger used in this project uses Rayton's bulging plates as heat exchange elements. By controlling the flow rate, spacing, plate height, etc. on the flue gas side, the dust accumulation problem on the flue gas side of the heat exchanger is effectively controlled. In this project, the cold side of the heat exchanger is air, and the hot side is high-dust flue gas.

Product Parameters:

Advantages:
(1) Laser Welded process provides high quality welding seam.

(2) The inflated channels create high turbulence flow to achieve high heat transfer efficiency.

(3) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others.

(4) Custom-defined size and shape are available.

(5) Special designed pillow plates ensure low inner channel pressure drop.

(6) Wide outer channels result in Low pressure drops, and make dust not prone to accumulate.

(7) Full welded channels ensure good seal performance.

Applcation:
(1) Preheat combustion air with exhausting gas

(2) Recovery heat of exhausting gas

(3) Heat exchanger between gas&gas or air&air

(4) Heat exchanger for chemical reaction of gaseous medium

(5) Waste gas heat exchanger
