Anti Scaling Surface Air To Air Plate Heat Exchanger 86666Nm³/H Medium Flow

Simple Maintenance Gas to Gas Pillow Plate Heat Exchanger Anti Scaling Surface Quick Installation

Overview:

The pillow-shaped plate structure of this heat exchanger gives it excellent anti-vibration performance, which is particularly suitable for industrial environments with vibration sources. Even under complex working conditions such as fan vibration and pipeline fluctuations, the special connection method and structural strength between the plates can effectively prevent leakage and damage. At the same time, the anti-scaling surface treatment technology of the equipment reduces the adhesion of dirt on the surface of the plate and maintains long-term stable heat exchange efficiency. The high sealing design eliminates gas leakage and ensures the safety and efficiency of the heat exchange process.

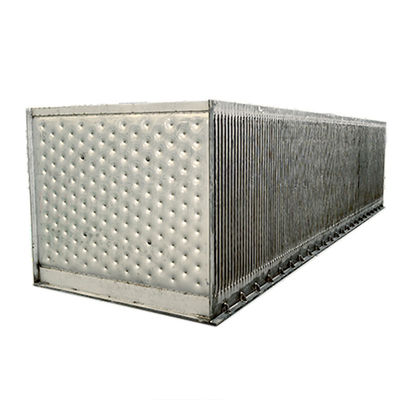

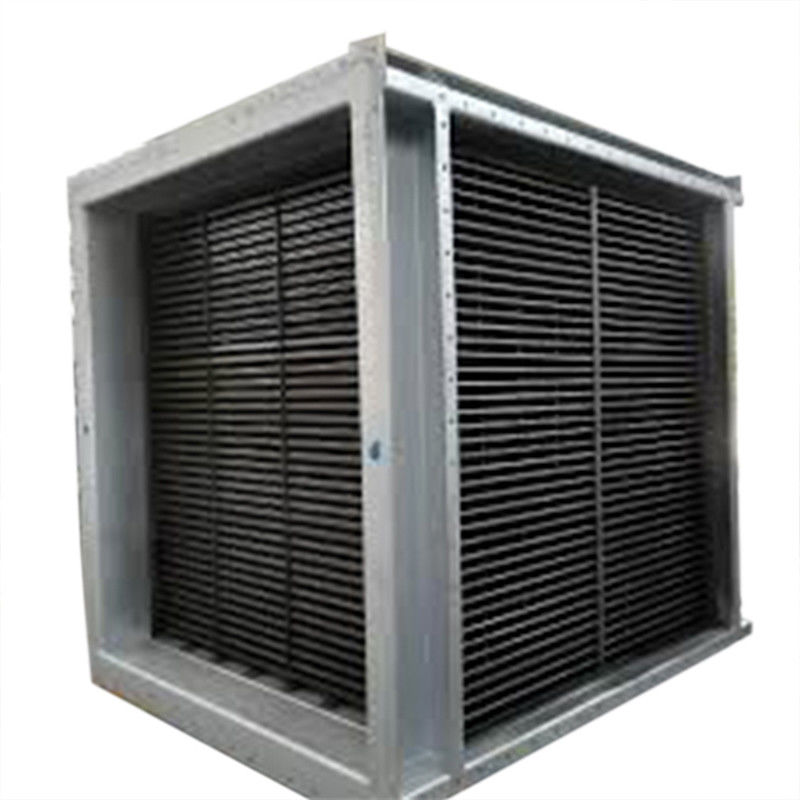

Product Image:

Product  Introduction:

In this type of product, the presence of impurities in the exhaust gas or high-temperature slabs is easy to adhere to the plate and cause blockage, so regular cleaning is required. However, conventional plate heat exchangers are limited by their manufacturing process and cannot withstand high pressures. They can only rely on large amounts of water for flushing, which not only has limited cleaning effects, but also causes high water waste and increased costs. To address this problem, by improving the manufacturing process, an air-to-air pillow plate heat exchanger with high pressure bearing capacity on the slab side is designed, which can support chemical boiling and washing processes, thereby significantly saving cleaning costs and improving cleaning efficiency.

Product Parameters:

Advantages:
(1) High pressure bearing and corrosion resistance:

The design pressure is 30kPa. By optimizing the plate structure and material (S31603 stainless steel), the pressure bearing capacity is improved to adapt to the impact of impurity flue gas and high-temperature plate environment.S31603 stainless steel material is resistant to high temperature and corrosion, and can withstand chemical corrosion in 439℃ high-temperature flue gas and exhaust gas for a long time.

‌

(2) High-flow and efficient heat exchange‌:
‌The medium flow rate reaches 115,000 Nm³/h (cold side), and the wide channel design reduces the risk of blockage, ensuring efficient heat exchange between high-flow exhaust gas and flue gas (heat load 9,096kW).Large inlet temperature difference (439℃→160℃)‌, quickly reducing the high-temperature flue gas temperature, while preheating the exhaust gas to 318℃, improving system energy efficiency.

‌

(3) Adaptable to chemical boiling and washing process‌:
Strengthen the sealing and plate deformation resistance, support high-pressure chemical cleaning, solve the problem of conventional water washing resource waste, and reduce maintenance costs.

Applcation:
(1) Preheat combustion air with exhausting gas

(2) Recovery heat of exhausting gas

(3) Heat exchanger between gas&gas or air&air

(4) Heat exchanger for chemical reaction of gaseous medium

(5) Waste gas heat exchanger
