Waste Gas Recovery Pillow Heat Exchanger Anti Pollution Lightweight

Waste Gas Recovery Gas to Gas Pillow Plate Heat Exchanger Anti Pollution Lightweight

Overview:

The gas-to-gas pillow plate heat exchanger brings continuous value to the enterprise with its high heat transfer efficiency and long service life. The efficient air-to-air heat exchange technology can quickly realize the heat transfer between cold and hot gases, meeting the strict temperature requirements of the production process. The high-quality materials and exquisite manufacturing process used in the equipment give it excellent corrosion resistance and wear resistance, and it is not easy to be damaged during long-term continuous operation. With regular maintenance, it can ensure that the equipment always maintains efficient and stable heat exchange performance during the service life of several years or even decades, reducing the cost of equipment renewal for enterprises.

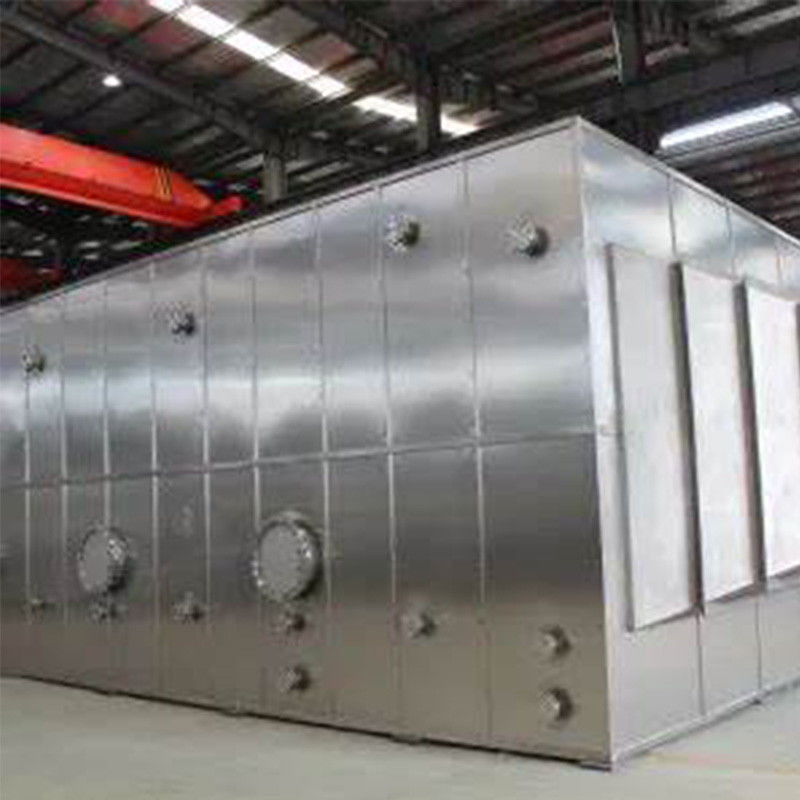

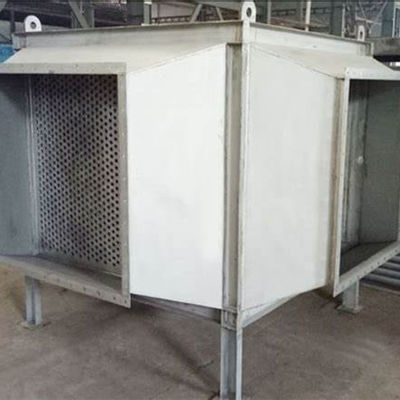

Product Image:

Product  Introduction:

The gas-to-gas pillow plate heat exchanger is an efficient and compact air-to-air heat transfer device based on the laser-welded pillow plate technology, designed for high-temperature and high-pressure gaseous media. Its core is formed by laser welding of double-layer stainless steel plates to form an expansion channel, which achieves the following functions through turbulent heat transfer enhancement:
‌High-efficiency heat recovery‌: Leak-free heat exchange between exhaust gas and fresh air/gas, significantly improving thermal efficiency;
‌Wide operating conditions adaptation‌: Suitable for preheating combustion air, chemical reaction gas heat transfer, industrial waste gas waste heat recovery and other scenarios;
‌Pressure-resistant and leak-proof‌: Fully welded sealed structure, resistant to high temperature and high pressure, suitable for harsh industrial environments.

Product Parameters:

Advantages:
(1) ‌Turbulence-enhanced design‌: The expansion channel promotes air turbulence, and the heat transfer efficiency is improved by 30%-50%;
‌

(2) ‌Low pressure drop optimization‌: The wide channel design reduces channel resistance and reduces gas pressure drop by 15%-20%.

(3) ‌Optional SS304/316L/2205, Hastelloy, titanium, etc., adapted to corrosive gas environments.

(4) ‌The plate thickness combination is adjustable (0.8mm~2.0mm) to meet different pressure and heat load requirements.

(5) ‌The wide external flow channel reduces dust accumulation and extends the maintenance cycle by 50%;

(6) ‌Polished surface treatment reduces dirt adhesion and is easy to clean.

Applcation:
(1) Preheat combustion air with exhausting gas

(2) Recovery heat of exhausting gas

(3) Heat exchanger between gas&gas or air&air

(4) Heat exchanger for chemical reaction of gaseous medium

(5) Waste gas heat exchanger

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
