High Sealing Flue Gas Exhaust Gas Pillow Plate Heat Exchanger 3081KW Customized Selection

High Sealing Design Gas to Gas Pillow Plate Heat Exchanger Customized Selection High Temperature Resistance

Overview:

The air-to-air pillow plate heat exchanger combines advanced manufacturing technology with innovative design concepts. The modular structure allows the equipment to be flexibly combined according to actual needs to meet heat exchange tasks of different scales. Its fast disassembly and maintenance characteristics greatly shorten the equipment maintenance time and reduce production losses caused by downtime. In the field of environmental protection, this equipment is often used for preheating of industrial waste gas. By recovering the heat of high-temperature waste gas to heat low-temperature purified gas, it realizes the recycling of energy and helps enterprises practice the concept of green development.

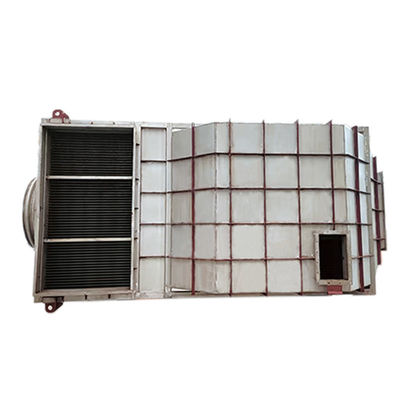

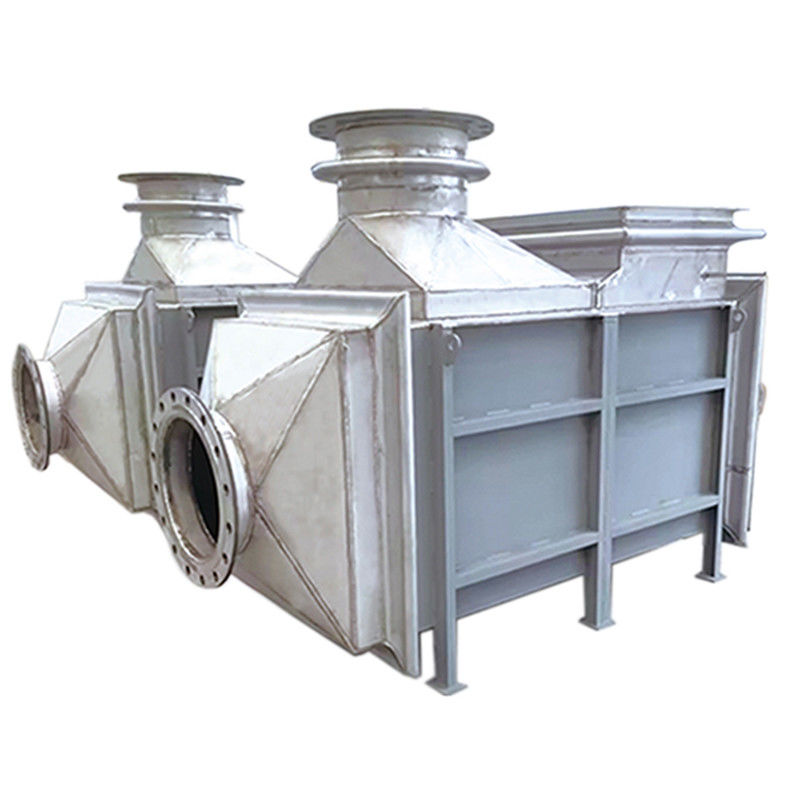

Product Image:

Product  Introduction:

The innovative pressure-resistant gas-gas pillow plate heat exchanger has achieved innovation through three process breakthroughs. It uses laser welding + titanium-based composite coating technology to increase the pressure resistance level of the plate side to 2.5MPa (ASME standard certification); develops a multi-stage chemical boiling and washing system (pH3-11 adaptive cleaning agent + 0.8Hz pulse jet) to increase the single cleaning efficiency by 60%; configures a closed-loop cleaning module, and achieves zero wastewater discharge through a waste liquid evaporation and crystallization device (in compliance with ISO14064 environmental protection certification).

Product Parameters:

Advantages:
(1) ‌Precise temperature control and pressure-resistant design‌:
‌Design pressure 25kPa, through plate process optimization, balance pressure requirements and lightweight structure.The inlet temperature span is large (409℃→119℃/36℃→319℃), and the flue gas waste heat is efficiently recovered to improve the exhaust gas treatment efficiency (heat load 3,081kW).

‌

(2) Medium flow adaptability and stability‌:
‌The medium flow rate is about 26,000 Nm³/h‌, and the wide channel plate reduces particle deposition, ensuring long-term stable operation under medium flow conditions.‌

‌

(3) Chemical cleaning compatibility‌:
The structural design is compatible with chemical boiling and cleaning, quickly removing plate deposits, reducing downtime, and reducing comprehensive maintenance costs by more than 30%.

Applcation:
(1) Preheat combustion air with exhausting gas

(2) Recovery heat of exhausting gas

(3) Heat exchanger between gas&gas or air&air

(4) Heat exchanger for chemical reaction of gaseous medium

(5) Waste gas heat exchanger
