Natural Circulation Incineration Boiler Pump Free Upgrade And Maintenance composite structure

Natural Circulation Incineration Boiler Pump Free Upgrade and Maintenance

Overview:

The incineration boiler adopts a composite structure design of a horizontal open-air frame and suspended support, integrated modular tail components (superheater, evaporator, economizer) and a natural circulation pump-free system, supporting rapid installation and commissioning. The furnace is equipped with an enhanced radiation heat exchange panel to optimize the heat transfer efficiency in a limited space; the steel frame platform is equipped with an intelligent sensor unit, compatible with an industrial-grade DCS system, adapted to the needs of upgrading traditional high-energy-consuming industrial equipment, and taking into account efficient heat recovery and intelligent operation and maintenance.

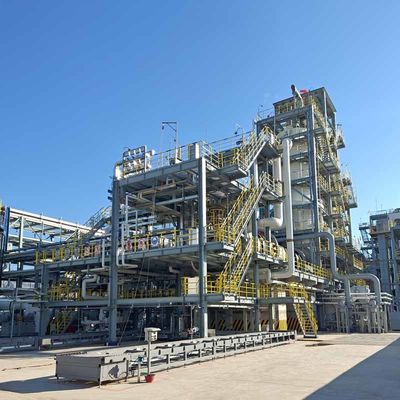

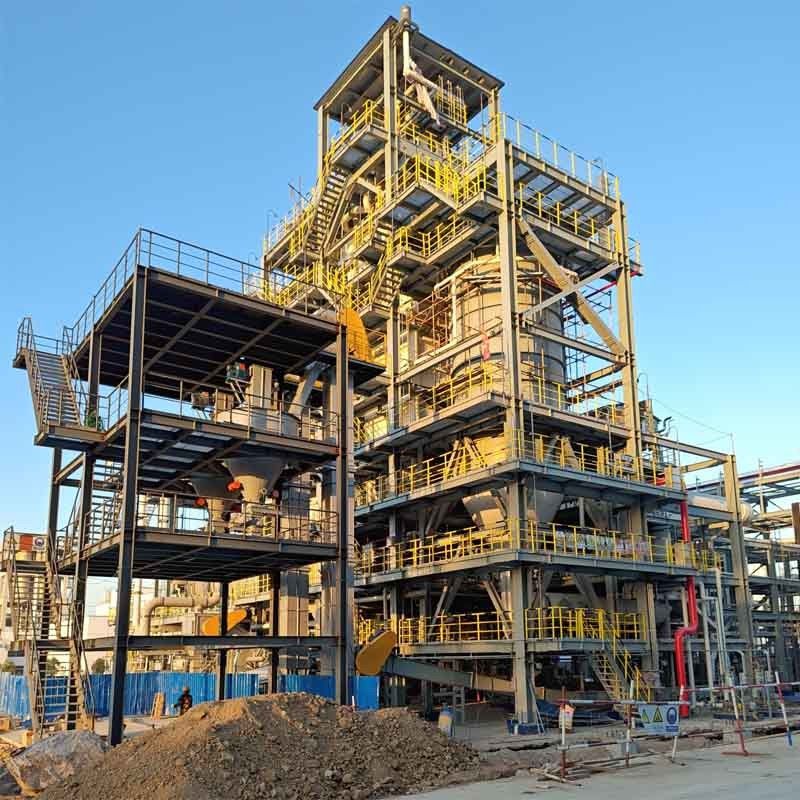

Product Image:

Product  Introduction:

Based on the ‌transverse open-air frame + suspension support composite structure‌, through the ‌pre-installed modular tail components‌ (superheater/evaporator/economizer overall hoisting) and the ‌natural circulation pump-free system‌, the 60t/h incineration boiler can be put into operation in 45 days. The furnace water-cooled wall adopts the ‌enhanced radiation heat exchange panel‌ (fin tube + nano coating), which improves the heat transfer efficiency by 20% in a limited space; the steel frame platform integrates the intelligent sensor unit (temperature/pressure/flow monitoring), supports seamless connection with the existing DCS system, and adapts to the iteration needs of traditional industrial equipment such as steel and coking.

Technical Specifications:

Advantages:

(‌1)Revolution of transformation cycle‌

Modular pre-installation reduces the construction cycle to 1/3 of conventional projects.

(‌2)Extreme use of space‌

The horizontal layout reduces the vertical height by 30% compared with the vertical boiler and is compatible with low-rise factories.

(‌3)Smart native‌

20+ IoT monitoring points realize real-time visualization of energy efficiency/emission data.
