High Steam Incineration Boiler With Suspended Water Cooled Wall Anti Disturbance Technology

Environmental Protection Incineration Boiler Continuous Operation Emergency System

Overview:

In response to the high steam quality requirements in the fields of fine chemicals, biopharmaceuticals, etc., this incineration boiler adopts suspended water-cooled wall anti-disturbance technology and a three-stage superheater joint control system to achieve precise temperature control and efficient heat energy conversion; through the composite pipe economizer design and optimized feed water preheating process, the stability of the thermal system and fuel utilization rate are improved, taking into account industrial-grade clean production and environmental protection and energy-saving requirements.

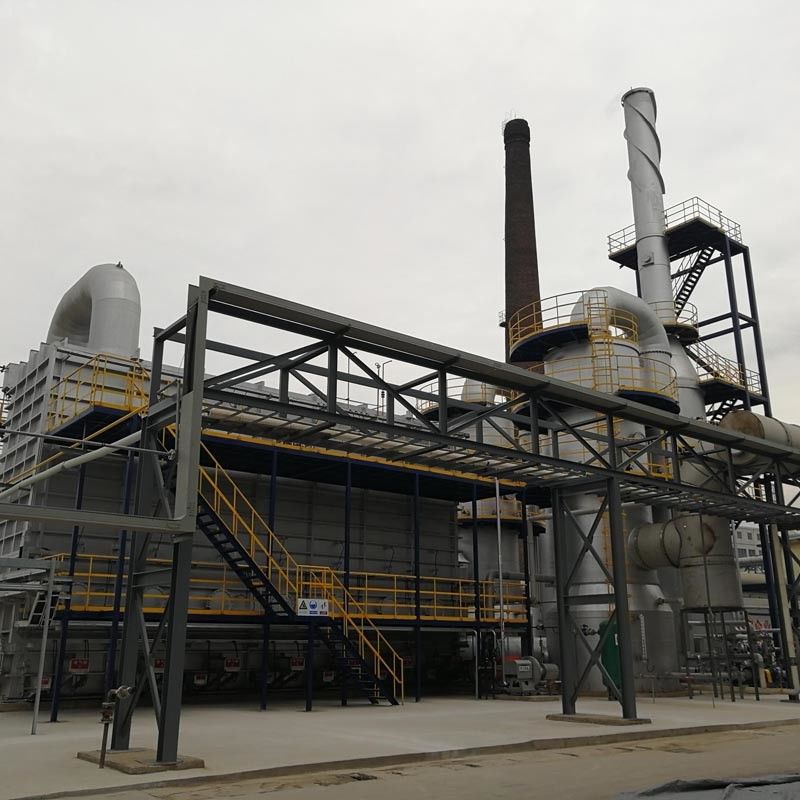

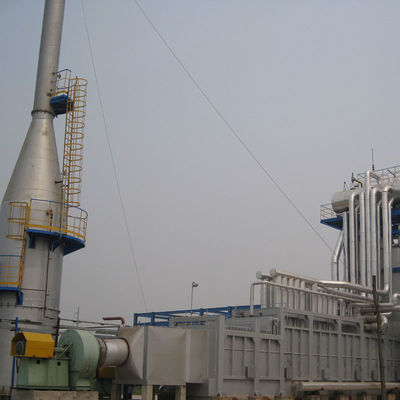

Product Image:

Product  Introduction:

In response to the high steam quality requirements of fine chemicals, biopharmaceuticals, etc., the incinerator adopts the suspended water-cooled wall anti-disturbance technology (full membrane seal + hydraulic damper), combined with the three-stage superheater PID joint control system (high temperature section feedforward compensation + medium temperature section fine adjustment + low temperature section precision control), to achieve a 435℃ steam temperature control accuracy of ±1.5℃. The economizer adopts the countercurrent-downstream composite pipe layout (three sets of independent flow channels), combined with a high feed water temperature of 104℃, to increase the fuel calorific value utilization rate to 92.2%.

Technical Specifications:

Advantages:

(‌1)Extremely stable steam parameters‌

The multi-stage cascade control system of the superheater makes the steam pressure fluctuation less than 0.05MPa1.

(‌2)Load mutation resistance‌

The damping design of the suspension structure can withstand 30% instantaneous load impact.

(‌3)Strong adaptability to water quality‌

The 5.6MPa high-pressure water supply system tolerates raw water with TDS≤5000ppm.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
