24 Hours Operation Incineration Boiler Hazardous Waste Treatment Low Emission

24 Hours Operation Incineration Boiler Hazardous Waste Treatment Low Emission

Overview:

In response to the needs of industrial waste treatment, this incineration boiler optimizes the combustion structure to achieve stable operation with low energy consumption and high thermal efficiency. It can be adapted to a variety of fuels (such as waste liquid, waste gas, solid waste), and is equipped with a waste heat recovery system to significantly reduce operating costs. It is suitable for industries such as metallurgy, food processing, and textiles that require long-term waste treatment, taking into account both economic and environmental protection.

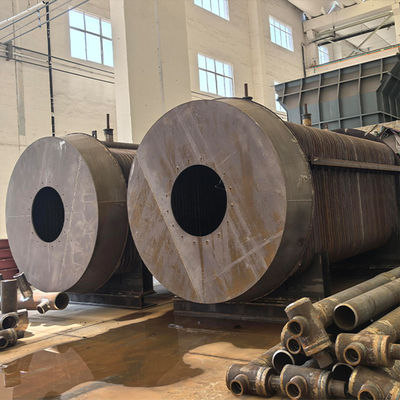

Product Image:

Product  Introduction:

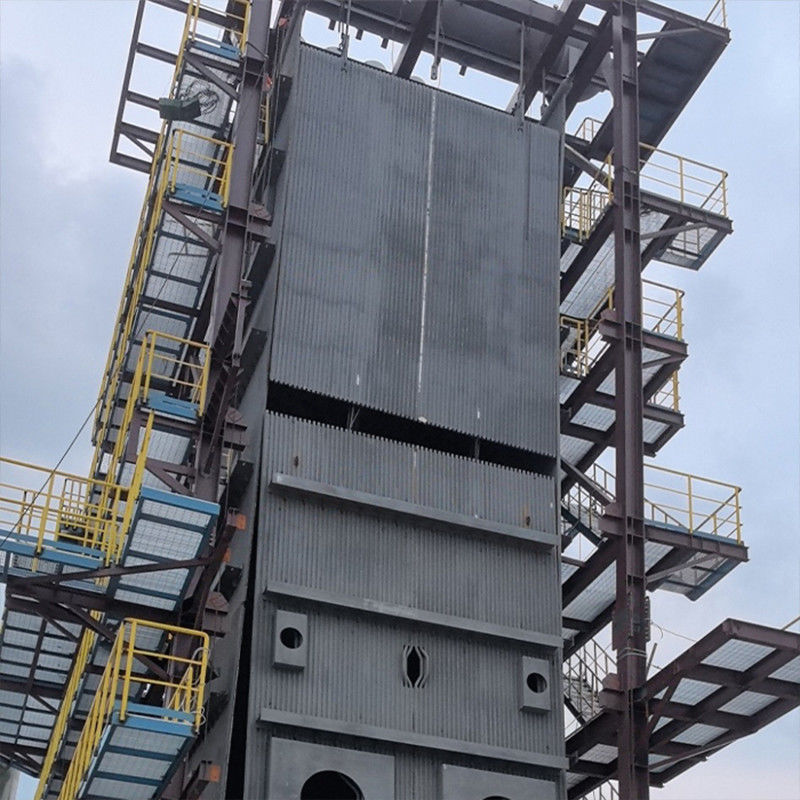

This boiler is a medium-temperature medium-pressure steam boiler, which adopts a single drum, horizontal type, chamber combustion, and natural circulation boiler. The furnace and membrane water-cooled wall adopt a suspended structure, and the tail superheater, evaporator and economizer adopt a supporting structure. It mainly includes burners, furnaces, drums, water-cooled walls, superheaters, evaporators, economizers, main pipelines, steel frames and platform escalators, etc. The drum is located at the highest point and supported on the top steel frame. The boiler is mainly used to treat the exhaust gas generated in the production process of users, and at the same time produces some steam, which can be used to supply production steam.

The waste gas enters the furnace after passing through a special burner for full combustion. The high-temperature flue gas first flows through the water-cooled wall for heat exchange and then enters the tail flue, and then flows through the high-temperature superheater, low-temperature superheater, two sets of evaporators and economizer in turn before entering the flue gas purification treatment device. Among them, the superheater, two sets of evaporators and economizer are modular structures.

Technical Specifications:

Advantages:

(1) ‌‌‌The thermal efficiency is up to 92% (applicable to natural gas/waste gas dual fuel), the exhaust temperature is as low as 158℃, the waste heat recovery rate is significant, and the energy saving and consumption reduction effect is outstanding.

(2) ‌‌‌The tail heat exchange components such as superheater, evaporator, economizer adopt modular structure, which is easy to install, flexible to maintain and shorten the construction period.

(3) ‌‌‌Special burners treat production waste gas, realize clean combustion of waste gas and co-production of steam at the same time, and have high resource recycling rate.

(4) ‌‌‌Flue gas undergoes multi-stage heat exchange (water-cooled wall → superheater → evaporator → economizer), combined with tail purification device, and meets environmental protection standards.

(5) ‌‌‌The natural circulation system (boiler drum → water-cooled wall → riser → steam-water separation) ensures the stability of water-steam circulation and reduces energy consumption.

(6) ‌‌‌High feed water temperature (133℃) optimizes heat utilization, reduces fuel consumption and reduces operating costs.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
