Energy Saving and Consumption Reduction Pillow Plate Heat Exchanger Strong Adaptability Continuous Welding

Energy Saving and Consumption Reduction Pillow Plate Heat Exchanger Strong Adaptability Continuous Welding

Overview:

Its core heat transfer enhancement technology is reflected in the fluid mechanics design of the three-dimensional flow channel: the complex flow channel formed by the concave and convex plates causes the fluid to constantly change direction and speed during the flow process, producing strong disturbance and mixing effects. The plate surface optimized by computational fluid dynamics (CFD) can increase the Nusselt number by 40%-60% while maintaining a low pressure drop coefficient. This "strong heat transfer, low energy consumption" feature makes it popular in the precision chemical and microelectronics industries that require precise temperature control.

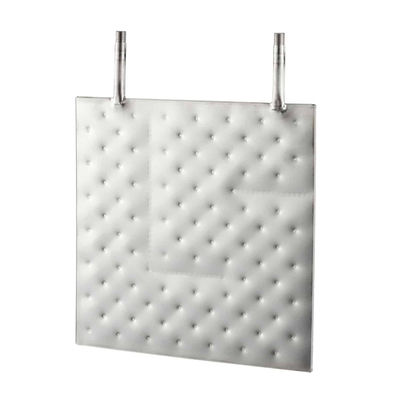

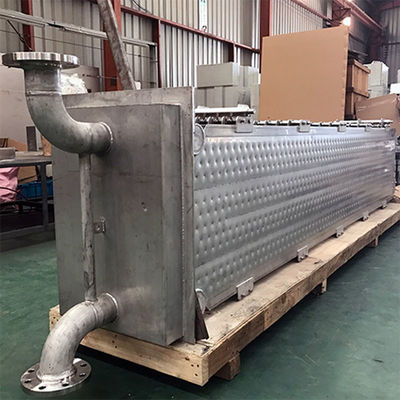

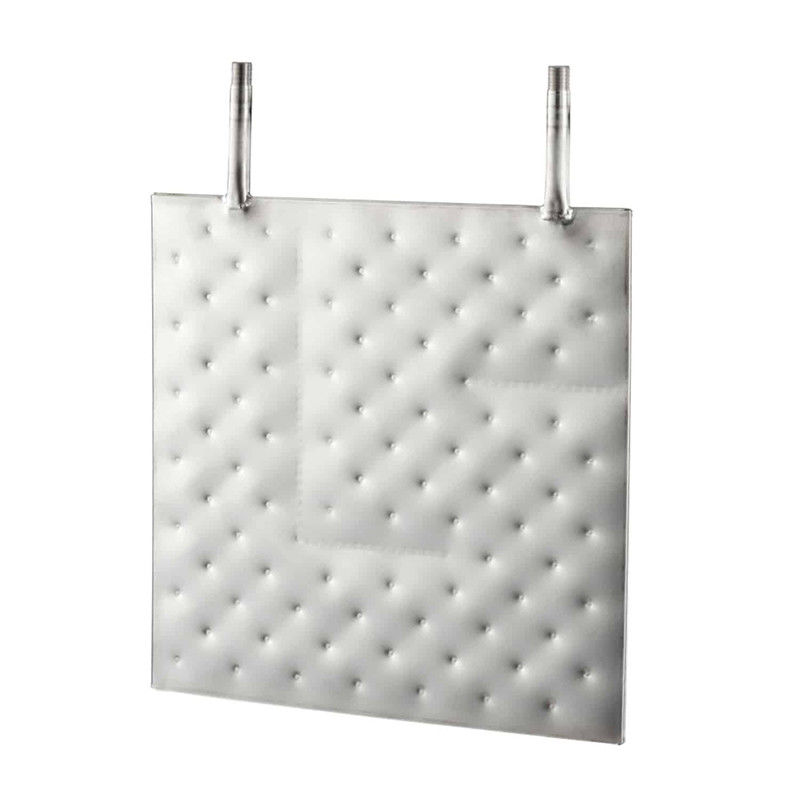

Product Image:

Brief  Introduction:

One of the core components of Jiangsu Ruiding's catalytic incineration device is the plate heat exchanger. The cold side of the heat exchanger is the exhaust gas, whose components are propylene, propane, formaldehyde, acetaldehyde, acrolein, acetic acid, acrylic acid, etc., and the hot side is the hot flue gas after the catalytic reaction.

Since the catalyst is very sensitive to the reaction temperature, temperature deviation will lead to reduced reaction efficiency; in this type of project, the exhaust gas preheater stabilizes the temperature before and after the catalytic reaction within ±2℃ of the design temperature.

Product Parameters:

Advantages:
(1) ‌High temperature, high efficiency and stability‌:
The heat load reaches 3930 kW, and it can handle large exhaust gas flows (cold side 63,935 Nm³/h), with an inlet temperature difference of 382℃ (hot side 505℃→240℃), and has outstanding heat exchange efficiency. ‌S30408 ​​stainless steel material, resistant to high temperature (505℃) and corrosion by organic acids such as acrylic acid, and has strong long-term operation reliability.

‌

(2) Precise temperature control protects the catalyst‌:
The outlet temperature of the cold side rises from 123℃ to 280℃, and the catalytic reaction temperature fluctuation is controlled within ±2℃, ensuring the activity and reaction efficiency of the catalyst.

‌

(3) Adapt to complex media‌:
The cold side exhaust gas contains highly corrosive components such as acrylic acid and formaldehyde, and the anti-blocking design of the plate heat exchanger reduces the risk of coking.

Applcation:
(1) ‌Industrial heat transfer‌: reactor jacket, melting crystallizer, flue gas waste heat recovery
‌

(2) ‌Environmental protection‌: sewage treatment, exhaust gas condensation
‌

(3) ‌Refrigeration system‌: plate ice maker, immersion cooling
‌

(4) ‌Energy equipment‌: fuel gas heat exchange, thermal oil circulation

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
