Overview:

With the trend of industrial intelligence, pillow plate heat exchangers are gradually integrating temperature sensors, flow monitoring modules and intelligent control systems to achieve real-time operating parameter monitoring and energy efficiency optimization. The research and development of new composite material plates (such as graphene-coated stainless steel) further improves corrosion resistance and heat transfer coefficient. In the future, the equipment will develop in the direction of large-scale, intelligent, and multifunctional integration, becoming the core equipment of thermal management technology in the green industrial system.

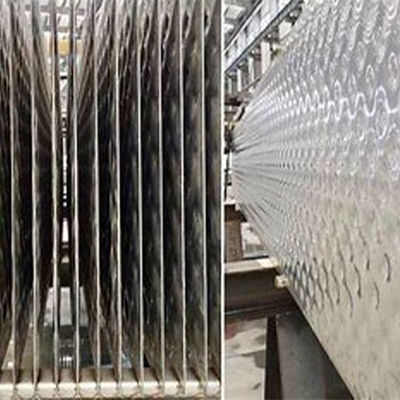

Product Image:

Brief  Introduction:

The core configuration of Jiangsu Ruiding catalytic incineration device is a plate heat exchanger, the cold side of which treats waste gas containing propylene organic matter and aldehydes/organic acid compounds (VOCs concentration 4.2-16.3%LEL), and the hot side is connected to 480-520℃ catalytic post-purification flue gas. Due to the high temperature sensitivity of the catalyst (design temperature ±2℃ control requirement), the integrated waste gas preheating system achieves temperature fluctuation ≤±1.8℃ (GB/T 20109 standard verification).

Product Parameters:

Advantages:
(1) Dual-material corrosion-resistant design‌:
Combined use of S22053 duplex steel + S31603 stainless steel, adapted to more complex corrosive environments (such as waste gas containing chloride ions), extending equipment life.

(2) ‌Low-temperature and high-efficiency energy saving‌:
The inlet temperature of the cold side is only 82℃, which rises to 188℃ after heat exchange, and the low-temperature waste heat recovery efficiency is increased by 15%, reducing energy consumption costs.

‌(3) Ultra-large flow processing capacity‌:
The cold side processing flow reaches 70,329 Nm³/h‌, and the hot side flow reaches 83,945 Nm³/h‌, which is adapted to the large-scale waste gas purification needs of an annual production of 90,000 tons of acrylic acid units.

‌(4) Wide temperature range and precise adjustment‌:
The hot side temperature drops from 240℃ to 150℃‌, and the cold side temperature rises by 106℃‌. The temperature difference control accuracy is maintained at ±2℃‌, ensuring catalytic oxidation stability.

Applcation:
(1) ‌Industrial heat transfer‌: reactor jacket, melting crystallizer, flue gas waste heat recovery
‌

(2) ‌Environmental protection‌: sewage treatment, exhaust gas condensation
‌

(3) ‌Refrigeration system‌: plate ice maker, immersion cooling
‌

(4) ‌Energy equipment‌: fuel gas heat exchange, thermal oil circulation
