PLC Precise Pillow Plate Heat Exchangers High Heat Recovery Rate Long Service Life

Precise Temperature Control Pillow Plate Heat Exchanger High Heat Recovery Rate Long Service Life

Overview:

For different media characteristics, the heat exchanger provides multiple material options: 304/316L stainless steel is used for conventional working conditions, Hastelloy and titanium are optional for acid and alkali resistant media, and nickel-based alloys can be used for high temperature and high pressure scenarios. The plate thickness is customized according to the pressure level (0.5-3mm), and the fully automatic welding process is used to ensure stable operation under extreme conditions such as -196℃ to 350℃, strong corrosion, high viscosity, etc., to achieve efficient thermal management of various fluids.

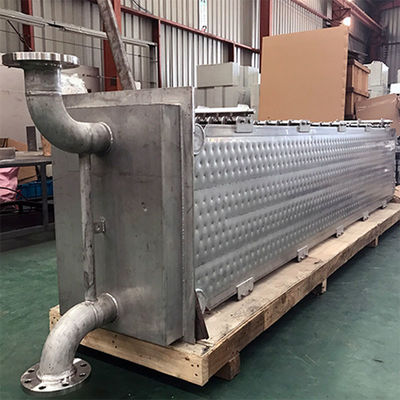

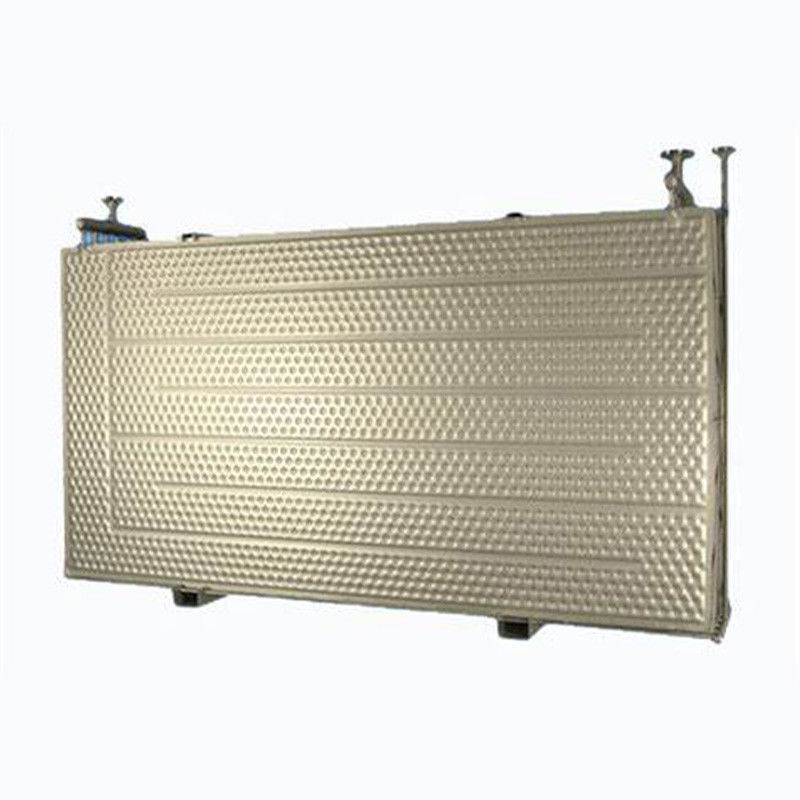

Product Image:

Brief  Introduction:

One of the core components of Jiangsu Ruiding's catalytic incineration device is the plate heat exchanger. The cold side of the heat exchanger is the exhaust gas, whose components are propylene, propane, formaldehyde, acetaldehyde, acrolein, acetic acid, acrylic acid, etc., and the hot side is the hot flue gas after the catalytic reaction.

Since the catalyst is very sensitive to the reaction temperature, temperature deviation will lead to reduced reaction efficiency; in this type of project, the exhaust gas preheater stabilizes the temperature before and after the catalytic reaction within ±2℃ of the design temperature.

Product Parameters:

Advantages:
(1) ‌High temperature, high efficiency and stability‌:
The heat load reaches 3930 kW, and it can handle large exhaust gas flows (cold side 63,935 Nm³/h), with an inlet temperature difference of 382℃ (hot side 505℃→240℃), and has outstanding heat exchange efficiency. ‌S30408 ​​stainless steel material, resistant to high temperature (505℃) and corrosion by organic acids such as acrylic acid, and has strong long-term operation reliability.

‌

(2) Precise temperature control protects the catalyst‌:
The outlet temperature of the cold side rises from 123℃ to 280℃, and the catalytic reaction temperature fluctuation is controlled within ±2℃, ensuring the activity and reaction efficiency of the catalyst.

‌

(3) Adapt to complex media‌:
The cold side exhaust gas contains highly corrosive components such as acrylic acid and formaldehyde, and the anti-blocking design of the plate heat exchanger reduces the risk of coking.

Applcation:
(1) ‌Industrial heat transfer‌: reactor jacket, melting crystallizer, flue gas waste heat recovery
‌

(2) ‌Environmental protection‌: sewage treatment, exhaust gas condensation
‌

(3) ‌Refrigeration system‌: plate ice maker, immersion cooling
‌

(4) ‌Energy equipment‌: fuel gas heat exchange, thermal oil circulation
