Vertical Open Air Integrated Special Boiler High Pressure Conditions Precise Temperature Control

Precise Temperature Control Special Boiler High Pressure Conditions Special Materials Production

Overview:

This special boiler adopts a vertical open-air integrated design, with the drum as the core, vertically integrating the economizer and superheater modules, and combining the box-type quick-release interface structure to achieve convenient replacement and efficient maintenance of the segmented modules. Through the coordinated temperature control system of water-cooled wall radiation heat exchange and superheater convection heat exchange, the stability of superheated steam output is guaranteed under high-pressure conditions, adapting to the stringent requirements for precise temperature control in fine chemicals and special materials production, while taking into account the compactness of the equipment and operational reliability.

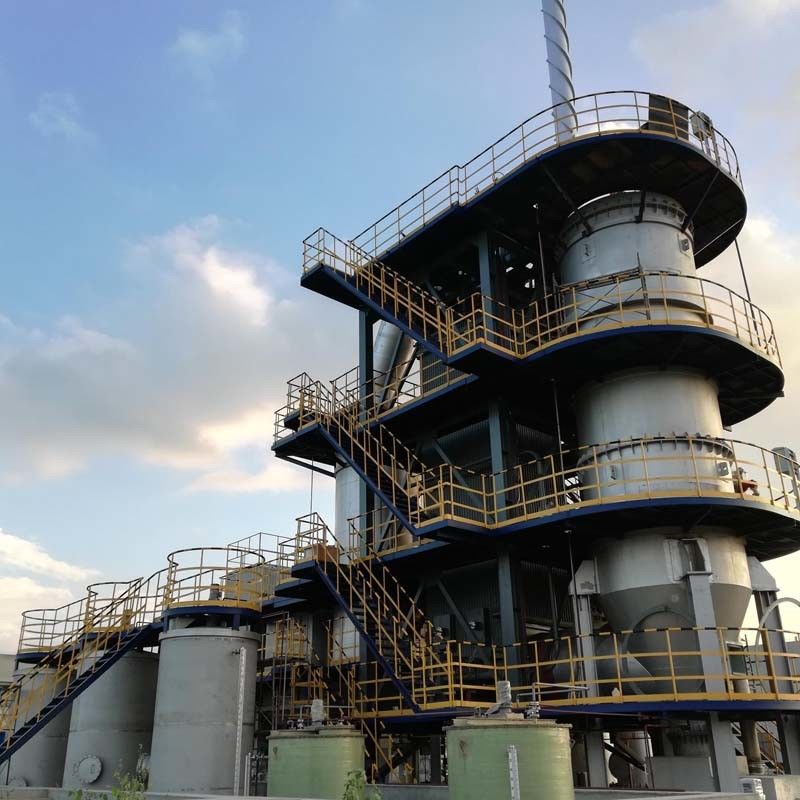

Product Image:

Product  Introduction:

This special boiler is based on a vertical open-air integrated architecture (drum in the center + economizer/superheater vertical stacking). Through the box-type economizer quick-release interface (flange seal + slide rail positioning), the second/third/fourth-stage economizer module can be replaced independently, and the maintenance downtime is shortened by 70%. It adopts a multi-media collaborative temperature control system (water-cooled wall radiation heat exchange + superheater convection heat exchange), and stably outputs 400℃ superheated steam under 4.6MPa high-pressure conditions, with a temperature fluctuation of ≤±5℃, meeting the production needs of fine chemicals and special materials.

Technical Specifications:

Advantages:

(1)Minimally simplified maintenance system‌

The quick disassembly technology of the box module increases the efficiency of spare parts replacement by 3 times.

(‌2)High-pressure steam stability‌

Dual-mode temperature compensation (PID regulation + desuperheating water redundancy) ensures that the steam quality compliance rate is greater than 99%.

(‌3)Land occupation intensive‌

The vertical layout reduces the floor area by 50% compared with the horizontal boiler of the same specification.
