High Air Tightness Membrane Wall Boiler Central Heating Chemical Production

Good Air Tightness Membrane Wall Boiler Central Heating Chemical Production

Overview:
Industrial high-efficiency membrane wall boiler - using advanced membrane water-cooled wall technology, the thermal efficiency is as high as 90% or more, significantly reducing fuel consumption! The boiler has a compact structure, is resistant to high pressure and high temperature, and is suitable for continuous high-load operation environments such as chemical plants and power stations. Modular design, easy maintenance, and intelligent control system to achieve precise steam supply, help enterprises save energy and reduce emissions, and reduce operating costs.

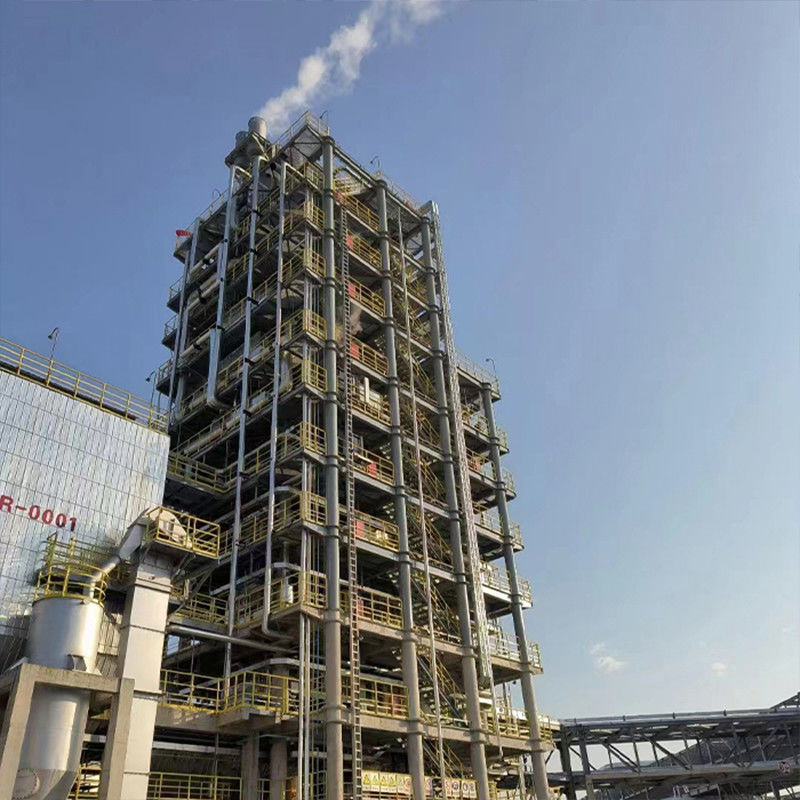

Product Image:

Product Introduction:

The boiler is a ‌vertical membrane wall boiler‌ with a ‌single steam drum design‌. Its main structure is arranged vertically from top to bottom as follows‌:
(1) Steam Drum‌: Fixed at the top of the rear steel frame‌
(2) Membrane Wall Radiation Section‌: Primary component for radiative heat transfer‌
(3) Superheater‌: Multi-stage tube bundle layout to enhance convective heat exchange‌
(4) Five-Stage Economizer‌ (No. 1–5): Counterflow arrangement for optimized waste heat recovery‌

Core Component Features:

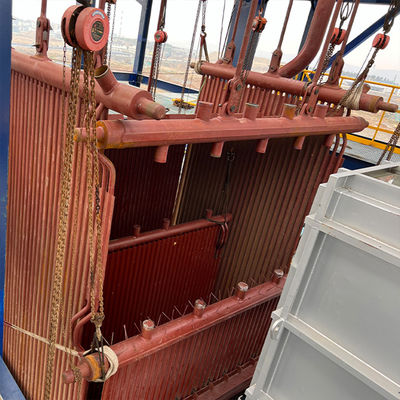

(1) Membrane Wall‌:Executes ‌radiative heat transfer‌ as the main functional unit‌;Exhibits ‌high-temperature resistance‌, ‌corrosion resistance‌, and ‌structural sealing‌‌
(2) Superheater‌:Utilizes ‌multi-stage tube bundles‌ to improve convective heat transfer efficiency‌
(3) Five-Stage Economizer‌:Counterflow design‌ maximizes residual heat recovery and reduces flue gas temperature‌

Technical Specifications:

Advantages:

(1) ‌Structural Innovation‌:

It employs a membrane water-cooled wall to replace traditional refractory furnace walls. The metal wall surface directly absorbs radiant heat, reducing the furnace body's weight by over 30% and enhancing airtightness, thereby reducing heat loss from exhaust gas due to air leakage.

(2) Professional Customized Design‌:

Membrane water-cooled walls can be configured in various forms, such as the double-cylinder membrane wall structure (SZS type), which shortens the installation period by 40% and reduces the steam cost per ton to less than 130 yuan.

A skid-mounted mobile boiler solution is available, suitable for temporary energy supply or distributed energy scenarios.

A panel-mounted boiler solution is also provided, suitable for medium to large boilers.

‌(3) High-Temperature Resistant Material Technology‌:

The high-temperature section of the membrane wall is surrounded by high-quality refractory materials, withstanding smoke temperatures up to 1200°C and improving corrosion resistance by 2 times, with a service life of 15 years or more.

It is equipped with a silicon carbide-lined combustion chamber, reducing direct erosion of the furnace body by high-temperature flue gas.

‌(4) Intelligent Control and Operation & Maintenance‌:

It integrates a PLC control system and IoT module, providing real-time monitoring of wall temperature, pressure, and combustion efficiency, with a fault warning accuracy rate of 98% or higher.

Supports remote adjustment of combustion parameters, dynamically matching production loads, and reducing comprehensive energy consumption by 12% to 18%.

Applcation:
Suitable for high-temperature and high-pressure scenarios such as industrial waste heat recovery, large-scale central heating, and chemical production. Single-unit steam capacity ranges from 10 to 200 tons.
