Water Cooled Waste heat flue gas Evaporator Economizer Integrated Optimal Performance

Water Cooled Wall Membrane Wall Boiler Evaporator Economizer Integrated Optimal Performance

Overview:
The membrane wall boiler adopts a vertical modular layout (water-cooled wall-evaporator-economizer integrated into one unit), and through compact structural design and matching with thermal shock-resistant materials, it ensures the stability of the system under extreme temperature fluctuations. Its gradient composite heat exchange technology is based on a graded heat recovery path (high-temperature flue gas radiation heat exchange → phase change heat absorption → countercurrent heat recovery), which realizes the step-by-step deep utilization of flue gas heat, significantly reduces the exhaust temperature and improves thermal efficiency. The surface of the water-cooled wall is integrated with high-temperature resistant and corrosion-resistant strengthening materials (such as silicon carbide ceramic coating), which can withstand ultra-high temperature flue gas erosion and high-dust, highly corrosive industrial environments, and is suitable for harsh waste heat recovery scenarios such as metallurgy and chemical industry.

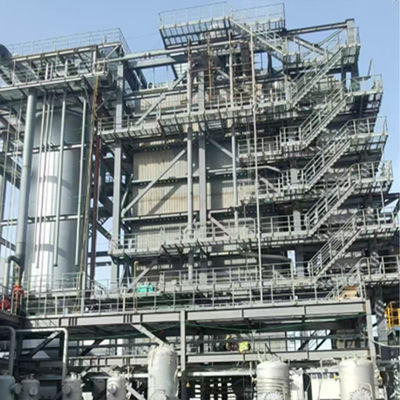

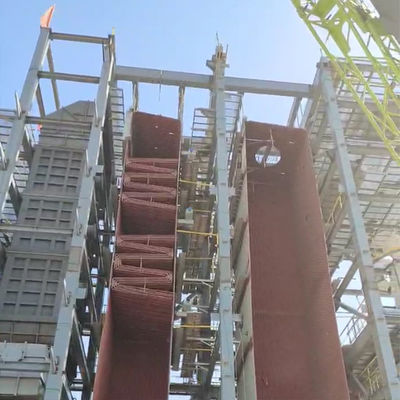

Product Image:

Product Introduction:

The membrane wall boiler is based on a vertical integrated thermal shock resistant structure (water-cooled wall-evaporator-economizer integrated modular layout), adopts gradient composite heat exchange technology (1340℃ flue gas → water-cooled wall radiation heat exchange → evaporator phase change heat absorption → economizer countercurrent heat recovery), achieves 215℃ exhaust gas temperature control, and thermal efficiency exceeds 85.6% (8% higher than similar equipment). The water-cooled wall integrates silicon carbide ceramic coating, which can withstand direct scouring of 1340℃ high-temperature flue gas (instantaneous peak 1500℃), and is suitable for extreme industrial waste heat scenarios with dust content ≤50g/Nm³, such as metallurgical furnaces and glass kilns.

Technical Specifications:

Advantages:

‌(1)Extreme high temperature resistance‌

Water-cooled wall ceramic coating + vertical package structure, the ability to resist thermal stress deformation is increased by 40%.

(‌2)High efficiency waste heat gradient recovery‌

The three-stage heat exchange unit operates in coordination, and the flue gas sensible heat recovery rate is increased by 12% year-on-year.

‌(3)Ultra-low maintenance cost‌

The packaged ash hopper design reduces the cleaning frequency by 60%, and the annual operation and maintenance cost is reduced by 35%.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.
