Dual Chamber Membrane Wall Boiler Enhanced Heat Transfer Corrosion Resistance

Dual Chamber Design Membrane Wall Boiler Enhanced Heat Transfer Corrosion Resistance

Overview:

The membrane wall boiler uses a chambered membrane wall radiation heat exchange architecture, combined with dual-channel superheater separation technology and a cross-chamber water spray cooling joint control system to achieve precise thermal control of high-temperature flue gas. The surface of the membrane water-cooled wall is optimized through flow channel optimization to form turbulent enhanced heat exchange, which significantly improves the heat recovery efficiency. At the same time, it uses high-temperature resistant and corrosion-resistant materials and structural design to adapt to high-dust and highly corrosive industrial flue gas environments. The integrated intelligent joint control system dynamically adjusts thermal parameters to ensure stable system operation.

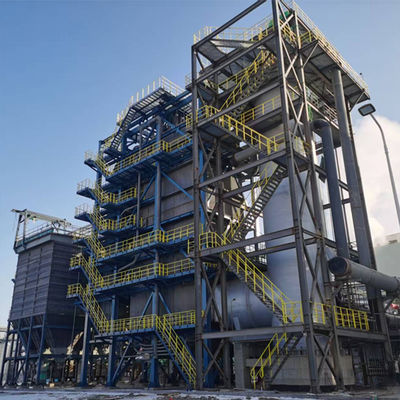

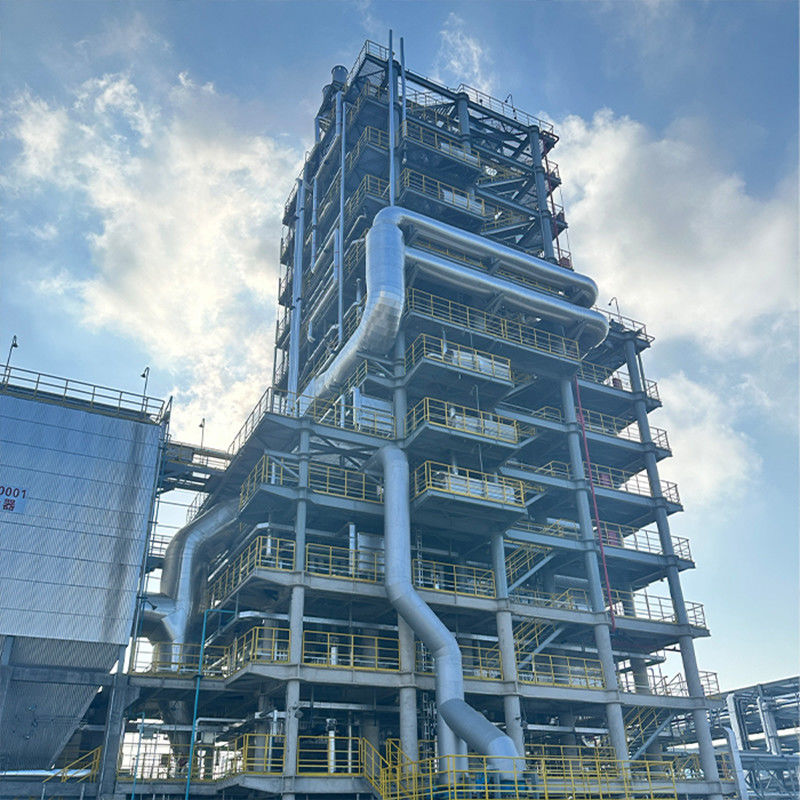

Product Image:

Product Introduction:

The chamber-type membrane wall radiation heat exchange architecture (high temperature section of the first cooling chamber + buffer section of the second cooling chamber) is adopted, and the dual-channel superheater split technology (900℃ tolerance of high temperature section/dynamic temperature adjustment of low temperature section) and the cross-chamber water spraying and temperature reduction joint control system are used to achieve precise control of the process exhaust temperature of 500-550℃.

When the waste heat flue gas passes through the 35256Nm³/h large-flux flow channel, turbulence is formed on the surface of the membrane water-cooled wall to enhance heat exchange, and the thermal efficiency is increased to 53.5% (8% higher than that of conventional waste heat boilers), which is suitable for industrial waste heat recovery scenarios containing high dust/strongly corrosive flue gas such as metallurgical kilns and chemical cracking.

Technical Specifications:

Advantages:

‌(1)Extreme working condition tolerance‌

The chamber membrane wall design can withstand 1200℃ instantaneous flue gas impact, and the wall temperature difference is ≤15℃.

‌(2)Waste heat deep efficiency improvement‌

The gradient heat exchange of the double cooling chamber increases the flue gas sensible heat recovery rate by 12%, saving more than 800 tons of standard coal annually.

‌(3)Dust self-cleaning‌

The ash drop port + membrane wall sequential tube row layout reduces the risk of ash accumulation and blockage, and the cleaning cycle is extended by 3 times.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
