Intelligent Control Membrane Wall Boiler Water Cooled Double Cylinder Reduced Energy Consumption

Intelligent Control Membrane Wall Boiler Double Cylinder Reduced Energy Consumption

Overview:
The membrane wall boiler adopts advanced water-cooled wall structure design, with a thermal efficiency of more than 90%, which significantly reduces industrial fuel consumption. Its modular membrane wall welding process ensures stable operation under high temperature and high pressure, and is suitable for industries that require continuous steam supply, such as chemical plants, power stations, and papermaking. It is energy-saving and environmentally friendly, meets industrial boiler emission standards, and helps companies reduce operating costs.

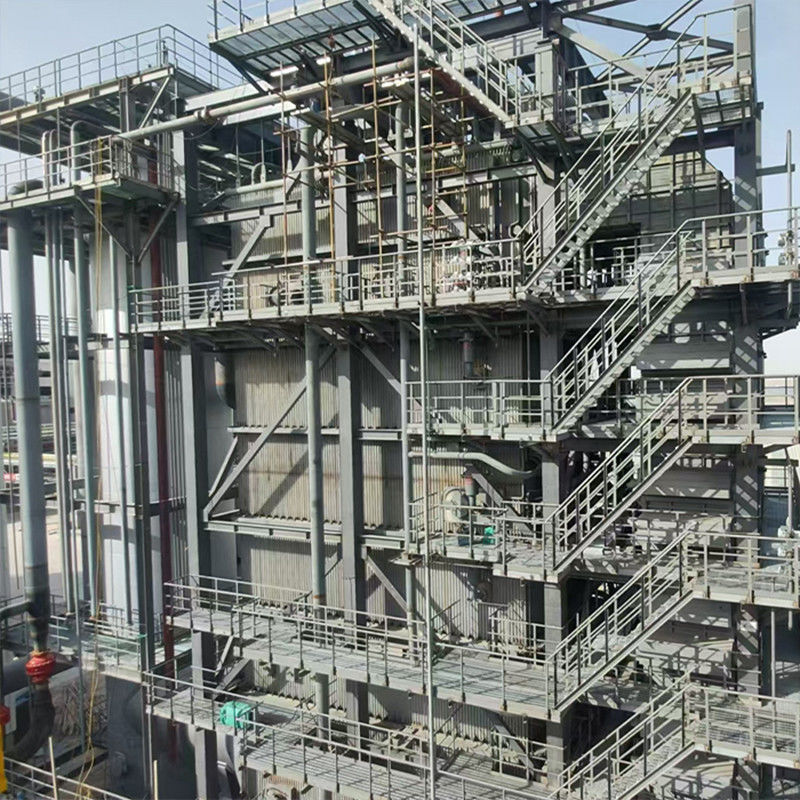

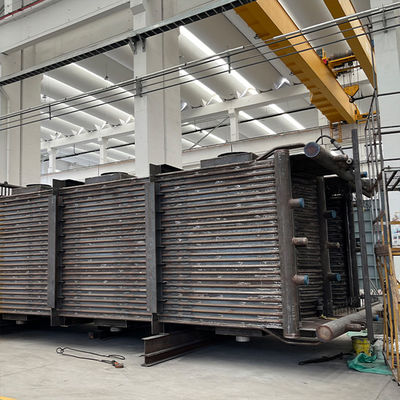

Product Image:

Product Introduction:

This boiler is a steam boiler that recovers waste heat from high-temperature flue gas. This boiler is equipped with water-cooled wall, evaporator, and economizer (flue gas flow direction) in sequence to meet the needs of device technology and energy saving and consumption reduction. This boiler adopts a vertical structure, which includes a drum, water-cooled wall, evaporator, economizer, and main body pipeline. Among them, the water cooling system, economizer, flue, and ash hopper adopt a complete structure.

Technical Specifications:

Advantages:

(1) ‌High efficiency and energy saving:

This boiler is designed for recovering waste heat from high-temperature flue gas. It can effectively utilize the heat energy in the flue gas and improve energy utilization efficiency. The rated thermal efficiency reaches 85.6%. Compared with traditional boilers, it can significantly reduce energy consumption and reduce operating costs.

(2) ‌Compact structure:

It adopts a vertical layout, compact structure, small footprint, and is easy to install and maintain. The water cooling system, economizer, flue, ash hopper and other components adopt a complete structure, which improves the overall stability and reliability.

(3) ‌Stable performance:

The rated evaporation capacity reaches 6.0t/h, which can meet most industrial steam needs.
The rated steam pressure is 1.0MPa and the rated steam temperature is 184℃, ensuring stable steam quality and meeting production process requirements.

(4) ‌Strong applicability:

The boiler adopts an open-air layout, which is highly adaptable and can be widely used in various industrial environments. The flue gas flow rate reaches 8320Nm³/h, which is suitable for processing large amounts of high-temperature flue gas.

Applcation:
Suitable for high-temperature and high-pressure scenarios such as industrial waste heat recovery, large-scale central heating, and chemical production. Single-unit steam capacity ranges from 10 to 200 tons.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.

Related Products:

Main Clients:

Company Introduction:

Ruiding is expertized in the engineering, fabrication, construction, commissioning service of industrial waste combustion treatment system including thermal oxidizer (also referred to as incinerator), heat recovery system (boiler), pressurized vessel, flue gas treatment system (DeSOX, DeNOx) and plate heat exchanger, etc.

Ruiding has been authorized with the Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for press vessel, GC1, GC2 press pipeline designing & construction certificate.

Ruiding covers a building area of over 250,000 square meters and has nearly 300 professional and technical staffs. We have completed over 500 engineering projects, spread across various domestic and international industries, with a significant market share in the petrochemical industry.

Faq:

1. What is the company's main business? ‌
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment (such as heat exchangers, sludge dryers, etc.) ‌.
2. Do you have industry qualification certification? ‌
The company has now passed the quality, environment, occupational health, and occupational hygiene and safety management system certifications, and has the second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
‌3. What are the core products? ‌
(1) Waste gas incinerator:
Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RC0), catalytic oxidation furnace (C0), high temperature thermal incinerator (T0), catalytic denitrification furnace (SCR)
(2) Waste liquid incinerator:
Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
(3) Solid incinerator:
Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
(4) A-level boiler:
Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
(5) Plate heat exchanger:
Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
(6) Incineration auxiliary machine:
Sludge dryer, customized burner, solid waste crusher, VOC catalyst ‌
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?

We have 29 patented technologies, covering the fields of incinerator structure optimization, heat recovery, etc. The company has a first-class design team in China, which has mastered the incinerator technology and is familiar with the operation of incinerators. The designers have a solid theoretical foundation and rich design and practical experience. During the design process, they combine the operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and the plan can be modified in time according to the buyer's requirements, and optimization suggestions can be made according to the buyer's data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
It has served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation? ‌
Holding the independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
