Corrosion Resistant Membrane Water Wall Boiler Automatic Thermal 35256Nm³/h

Corrosion Resistant Membrane Wall Boiler Automatic Thermal Energy Equipment

Overview:

Designed specifically for high-energy consumption industries such as steel and metallurgy, the membrane wall boiler is made of high-strength alloy steel, with a pressure bearing capacity of more than 10MPa and long-term tolerance of 800℃ high temperature. The closed membrane wall structure eliminates flue gas leakage and has excellent heat conduction efficiency, which is suitable for waste heat recovery systems and significantly improves industrial energy utilization.

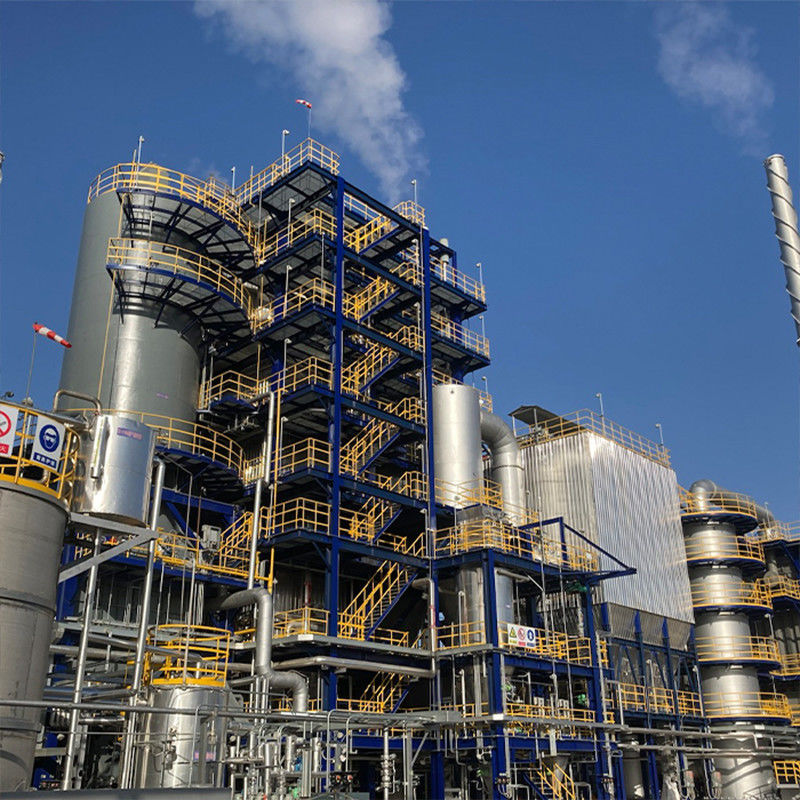

Product Image:

Product Introduction:

Structure: Single drum horizontal medium-pressure natural circulation boiler, full membrane water-cooled furnace suspended on the steel frame top plate, external support drum; furnace is divided into the first and second cooling chambers (membrane wall separation), with ash drop outlet, high and low temperature superheaters are placed in two channels, with water spray desuperheater in between.
‌
Flue gas flow: waste heat flue gas → membrane wall → superheater tube bundle heat exchange.
‌
Water vapor cycle: feed water → drum → downcomer → membrane wall → upcomer → drum (steam-water separation → saturated steam → superheater → superheated steam → pipe network); drum water is replenished to the lower header through the downcomer to complete the natural cycle.

Technical Specifications:

Advantages:

(1) ‌‌Intensive layout‌:
The boiler drum is arranged at a high position on the top of the steel structure, combined with the platform escalator and the integrated design of the steel frame, with a compact structure and high space utilization.
‌
(2) ‌‌Efficient heat absorption‌:
The membrane water-cooled wall is used as the core heating surface to enhance the heat absorption of flue gas and significantly improve the thermal efficiency.
‌
(3) ‌‌Convenient installation and maintenance‌:
The modular structure design simplifies the on-site installation process, reduces the complexity of construction, and shortens the construction period.
‌
(4) ‌‌Operation stability‌:
The overall steel frame support is stable, and the key components are reasonably arranged to ensure long-term safe and reliable operation.

Applcation:
Suitable for high-temperature and high-pressure scenarios such as industrial waste heat recovery, large-scale central heating, and chemical production. Single-unit steam capacity ranges from 10 to 200 tons.
