Waste Gas Recycling Waste Heat Boiler Environmental Protection High Efficiency Customization
Overview:
This waste heat boiler is specially designed for heat recovery of industrial waste gas. It adopts high-efficiency heat exchange technology and can convert the waste heat of high-temperature flue gas and waste gas into steam or hot water, significantly improving energy utilization and reducing enterprise energy consumption costs. It is suitable for high-energy-consuming industries such as steel, chemical, and cement.

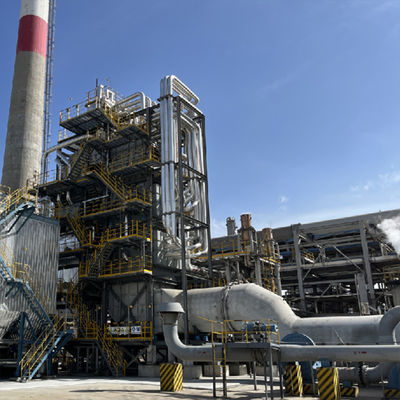

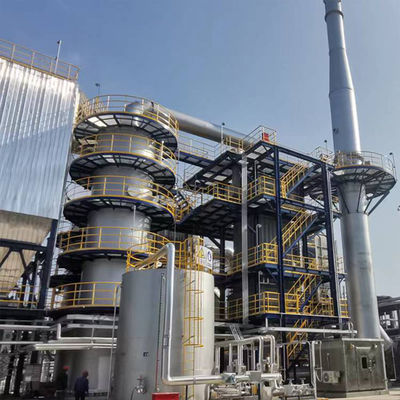

Product Image:
Product Introduction:
This waste heat boiler is used to recover the high-temperature flue gas waste heat generated in the CO incinerator of the methanol to olefins unit (DMTO unit) to produce 52.7t/h (4.1MPa, 420℃) medium-pressure superheated steam. The superheated steam produces 30.25t/h of saturated steam and 22.45t/h of external saturated steam. 22.9t/h of hot water is transported outward from the preheating boiler feed water to meet the requirements of the unit's process steam and energy saving and consumption reduction.
This waste heat boiler adopts a "П" type layout, with a steam drum, a front water protection section, a rear water protection section, a high-temperature superheater, a low-temperature superheater, an evaporation section, a high-temperature economizer and a low-temperature economizer. The heating surface equipment adopts a modular structure. In order to facilitate the adjustment and control of the steam temperature at the outlet of the superheater, a water spray desuperheater is set between the high and low-temperature superheaters. In order to timely remove the dust accumulation in the heat exchange tube and ensure the heat transfer effect of the heating surface, a shock wave soot blower is arranged between each heating surface module.
Technical Specifications:
| Boiler type |
Medium temperature and medium pressure, П type |
| Boiler model |
Q60.1/1280-52.7-4.1/420 |
| Rated evaporation capacity |
52.7t/h (including 22.45t/h of external saturated steam) |
| Rated steam pressure |
4.1MPa |
| Rated steam temperature |
420℃ |
| Feedwater flow |
53.75 t/h (including 22.9t/h of external water supply) |
| Feedwater inlet temperature |
104℃ |
| Flue gas flow |
60157Nm³/h |
| Flue gas temperature |
1280℃ |
| Exhaust gas temperature |
160℃ |
| Boiler layout |
Open-air layout |
Advantages:
(1) High-efficiency waste heat recovery and energy saving and consumption reduction, realize energy cascade utilization, and have outstanding comprehensive energy saving effects.
(2) Multi-source steam integration, adapt to complex working conditions, and improve system compatibility.
(3) Modular thermal system: The heating surfaces such as steam drum, superheater, evaporation section, and economizer adopt modular structure, which is easy to install and maintain and has strong scalability.
(4) Water spray desuperheater is installed between high and low temperature superheaters to accurately control the outlet steam temperature and ensure steam quality and system stability.
(5) П-type structural layout: optimize the flue gas flow (front/rear water protection section → superheater → evaporation section → economizer), enhance heat exchange efficiency, and extend equipment life
(6) Specially designed for methanol to olefins (DMTO) units, efficiently treat CO incinerator flue gas, take into account process steam and energy-saving goals, and help green upgrade chemical production.
