Gas Turbine Waste Heat Recovery Boiler Combined Cycle Power Generation 95.6t/H Rated

Gas Turbine Waste Heat Boiler Combined Cycle Power Generation Heat Recovery

Overview:

A large amount of high-temperature waste gas is generated during the chemical production process. This waste heat boiler uses special materials and anti-corrosion structure to effectively recover waste heat from reactors, cracking furnaces and other equipment, generate steam for process or power generation, and improve the comprehensive utilization rate of energy.

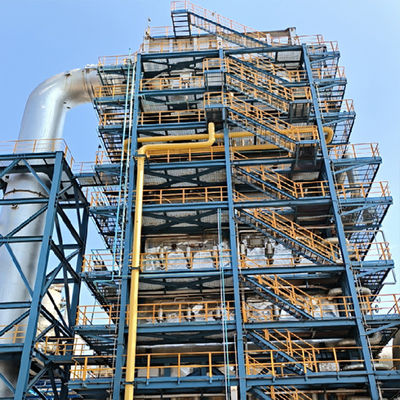

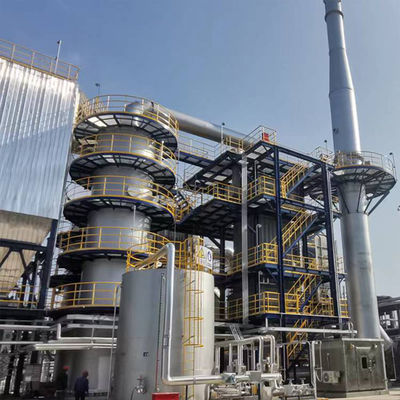

Product Image:

Product Introduction:

This waste heat boiler is designed for high-temperature flue gas waste heat recovery of the CO incinerator of the catalytic cracking unit of the refinery. Through the efficient heat exchange system, it generates 95.6t/h (pressure 3.9MPa, temperature 440℃) of medium-pressure superheated steam. Its steam source consists of two parts: 56.2t/h of saturated steam produced by the system itself and 39.4t/h of saturated steam supplied from the outside. In addition, the boiler converts the feed water into 26.89t/h of high-temperature hot water for external output through the preheating process, realizing the process steam demand of the unit and the cascade utilization of energy at the same time, significantly reducing the overall energy consumption.

The waste heat boiler adopts the "П" type structural layout, equipped with a steam drum, a screen evaporation section, a high temperature/low temperature superheater, a high temperature/low temperature evaporation section and a high temperature/low temperature economizer, and the heating surface adopts a modular design. A water spray cooling device is set between the high-temperature and low-temperature superheaters to accurately control the steam temperature; a shock wave soot blower is configured between the modules to clean the soot in real time through high-frequency shock waves to ensure the stable heat transfer efficiency of the heating surface.

Technical Specifications:

Advantages:

(1) Efficient waste heat recovery:

Adapt to 860℃ high-temperature flue gas (193192Nm³/h), deeply cool to 176℃, and realize efficient utilization of waste heat cascade.
‌
(2) Flexible steam integration:

Rated evaporation capacity is 95.6t/h (including 39.4t/h external steam access), and 440℃ superheated steam output is accurately controlled to meet the dynamic needs of refining and chemical processes.
‌
(3) Modular strong maintenance:

П-type layout + temperature zone module design (high/low temperature superheater/evaporator/economizer), equipped with shock wave soot blowing system, heat transfer efficiency is increased by more than 15%.

(4) Significant energy-saving integration:

The preheating process produces 26.89t/h of high-temperature hot water, and simultaneously reduces the comprehensive energy consumption of the device by 20%-30%.

(5) Advanced temperature control technology:

The water spray cooling device achieves ±5℃ tolerance control of 3.9MPa steam, ensuring safe and stable operation of the system.

R&D and Production:

Ruiding has established the jiangsu province clean incineration resource engineering technology center and the key laboratory of the JICUI-Ruidings joint innovation center.

This laboratory is equipped with advanced detection equipment such as ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. it possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis, etc.
